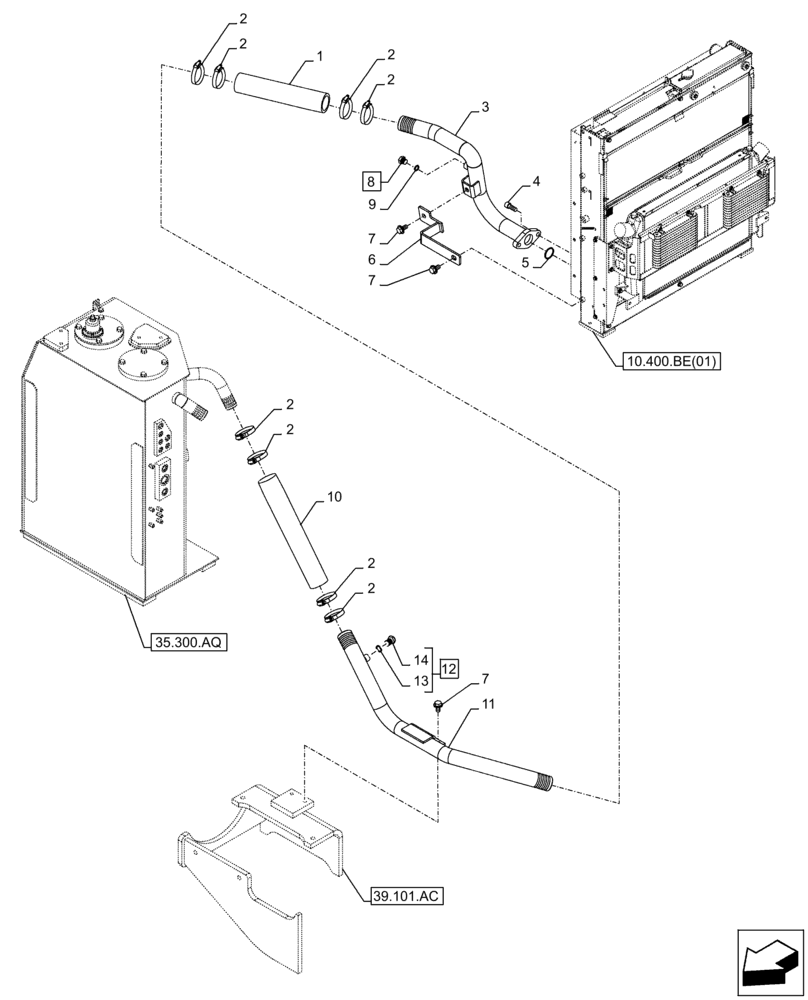

Запчасти Case CX300D LC (35.300.BC[01]) - OIL COOLER LINE (35) - HYDRAULIC SYSTEMS

1

KHJ29650

HOSE

1шт.

2

KHJ26110

HOSE CLAMP

8шт.

3

KBJ23310

TUBE

, Serial Range: -C0275

1шт.

3

KBJ25800

TUBE

, Start Serial: D0275

1шт.

4

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

2шт.

5

154588A1

O-RING

1шт.

6

KBJ23320

BRACKET

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

8

153105A1

PLUG

ASSY, Incl 9, Serial Range: -C0275

2шт.

9

154475A1

O-RING

, Serial Range: -C0275

1шт.

10

167519A1

HOSE

1шт.

11

KBJ23331

TUBE

1шт.

12

159002A1

PLUG

ASSY, G1/4", Incl 13, 14

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.
