(35.300.AN[02]) - HYDRAULIC SYSTEM, OIL FILTER

Запчасти Case CX300D LC (35.300.AN[02]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS

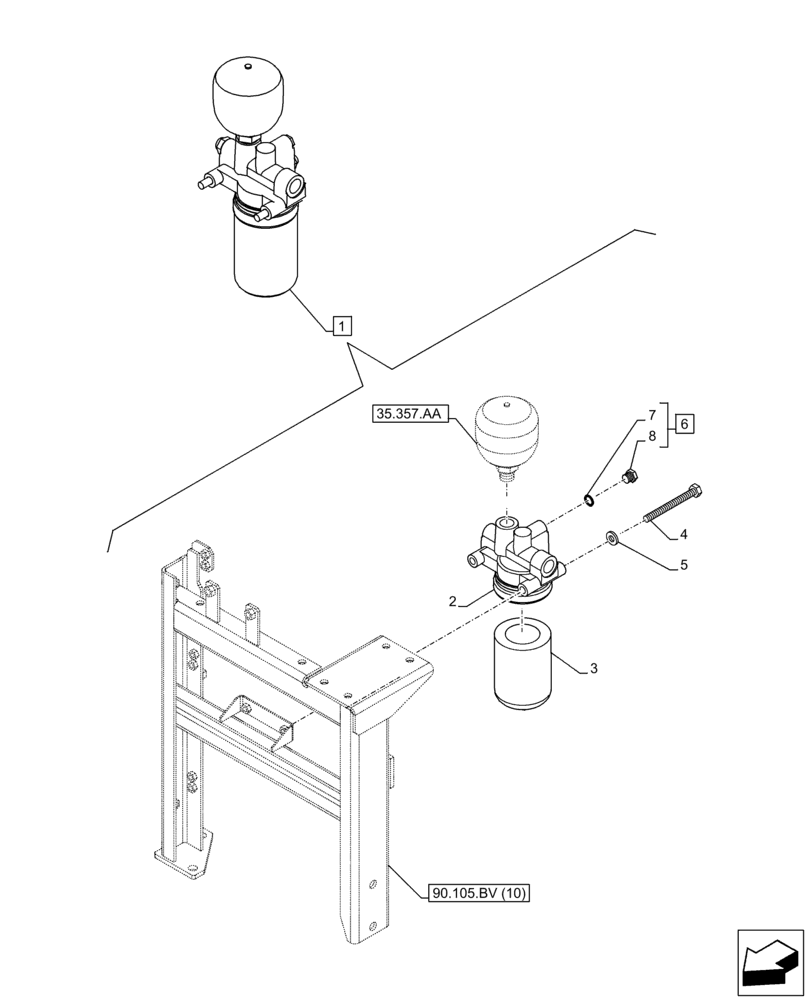

Схема запчастей Case CX300D LC - (35.300.AN[02]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS
2
4
35.357.aa
7
6
5
90.105.bv (10)
1
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ17711

ACCUMULATOR

ASSY, Incl 2 - 3

1шт.

2

KHJ17720

FILTER HEAD

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Pilot Filter Element

1шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

5

150409A1

WASHER

M10

2шт.

6

159002A1

PLUG

ASSY, Incl 7, 8

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.
