(35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE

Запчасти Case CX300D LC (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

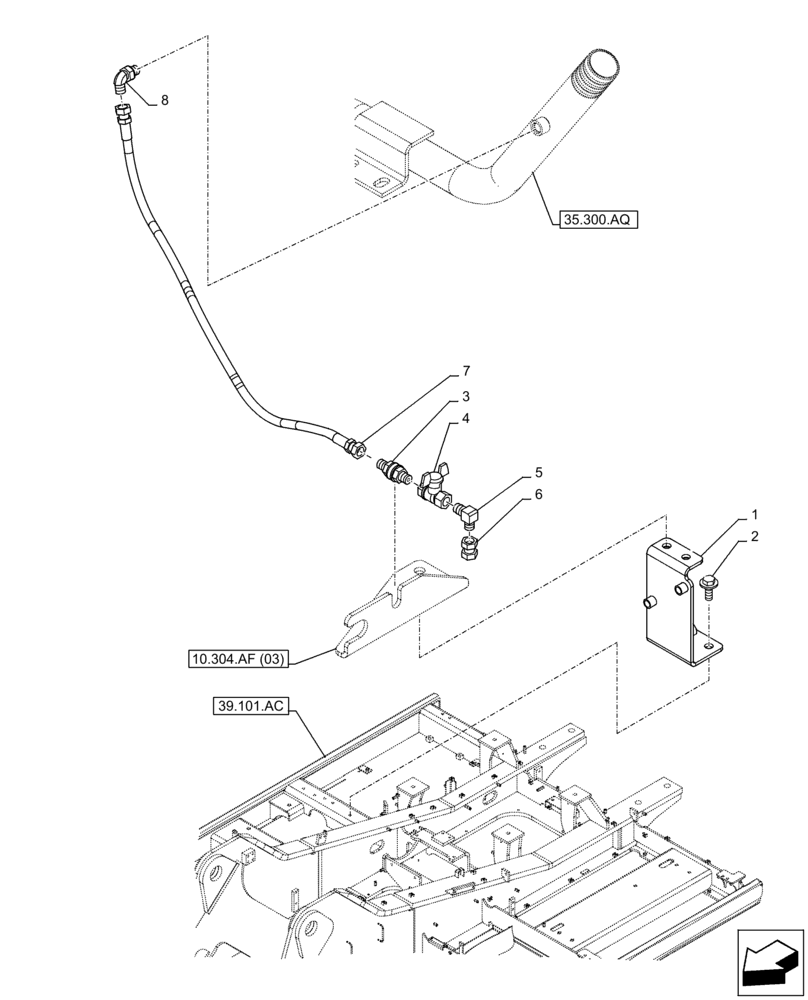

Схема запчастей Case CX300D LC - (35.300.AD) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS
4
35.300.aq
6
5
3
10.304.af (03)
2
8
39.101.ac
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ22170

BRACKET

1шт.

2

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

3

162640A1

ADAPTER

1шт.

4

158923A1

DRAIN VALVE

1шт.

5

153596A1

ADAPTER

1шт.

6

158842A1

PLUG

1шт.

7

KHJ1114

HYDRAULIC HOSE,6.35 mm ID x 850.00 mm

1шт.

8

KHJ28580

ELBOW

1шт.

Выбрано товаров: 8
