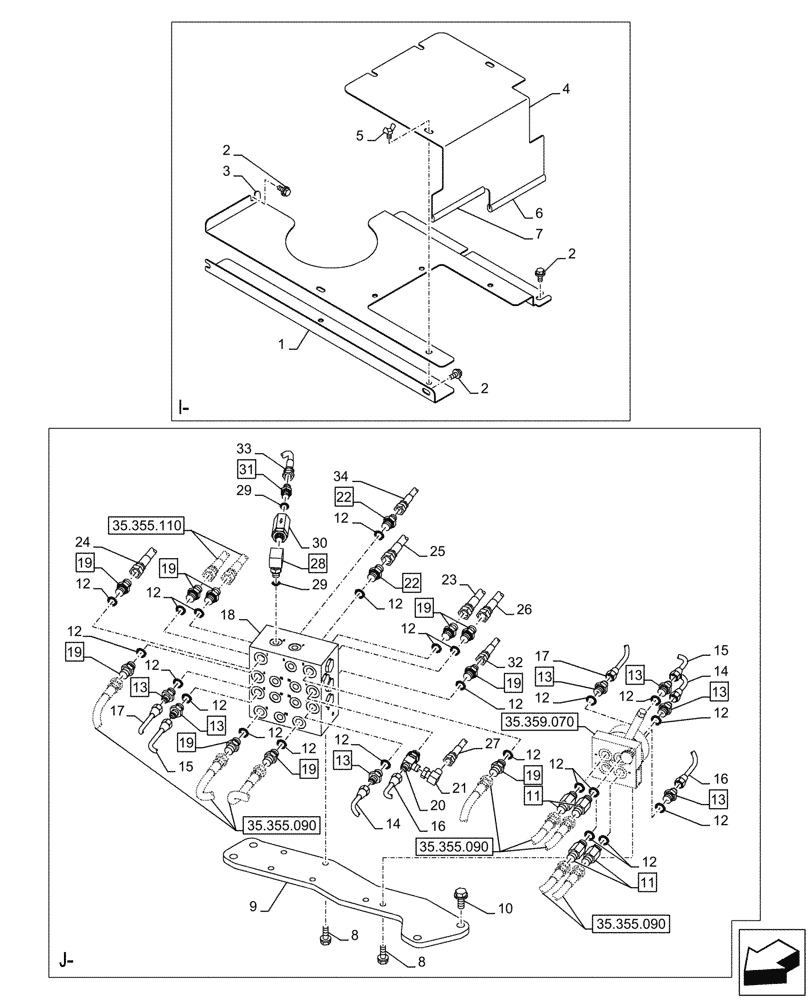

Запчасти Case CX290D LC SL (35.355.120) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KBJ27200

COVER

1шт.

2

166350A1

BOLT

M8 x 20mm

4шт.

3

KBJ28390

COVER

1шт.

4

KBJ29630

COVER

1шт.

5

KHN17030

SPECIAL BOLT

M8 x 12mm

4шт.

6

158793A1

CUSHION

1шт.

7

KRN2916

ELASTIC JOINT

L=140mm

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

6шт.

9

KBJ29620

BRACKET

1шт.

10

166352A1

BOLT

M12 x 30mm

4шт.

11

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 12 (Qty 1)

4шт.

12

150031A1

O-RING,10mm ID x 24mm OD

23шт.

13

KHJ1821

NIPPLE, LUBE

ASSY, Incl 12 (Qty 1)

7шт.

14

KHJ37690

TUBE

1шт.

15

KHJ37700

TUBE

1шт.

16

KHJ37710

TUBE

1шт.

17

KHJ37720

TUBE

1шт.

18

KBJ29580

VALVE

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 12 (Qty 1)

10шт.

20

KHJ24730

TEE

G3/8" x M14 x G1/4"

1шт.

21

163814A1

ELBOW

1шт.

22

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 12 (Qty 1)

2шт.

23

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm, from Cushion Valve to Control Valve

1шт.

24

KHJ14110

HYDRAULIC HOSE

9mm ID x 2150mm, from Cushion Valve to Valve Reducing

1шт.

25

KHJ2057

HOSE

6mm ID x 1450mm, from Cushion Valve to Control Valve

1шт.

26

KHJ2010

HOSE

9mm ID x 1450mm, from Cushion Valve to Control Valve

1шт.

27

KHJ2059

HOSE

6mm ID x 1650mm, from Cushion Valve to Control Valve

1шт.

28

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 29

1шт.

29

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

30

KHJ10790

FILTER SCREEN

1шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 29 (Qty 1)

1шт.

32

KHJ15490

HYDRAULIC HOSE

9mm ID x 1350mm, from Cushion Valve to Control Valve

1шт.

33

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

6mm ID x 1400mm, from Cushion Valve to Control Valve

1шт.

34

KHJ2056

HYDRAULIC HOSE

6mm ID x 1300mm, from Cushion Valve to Control Valve

1шт.
