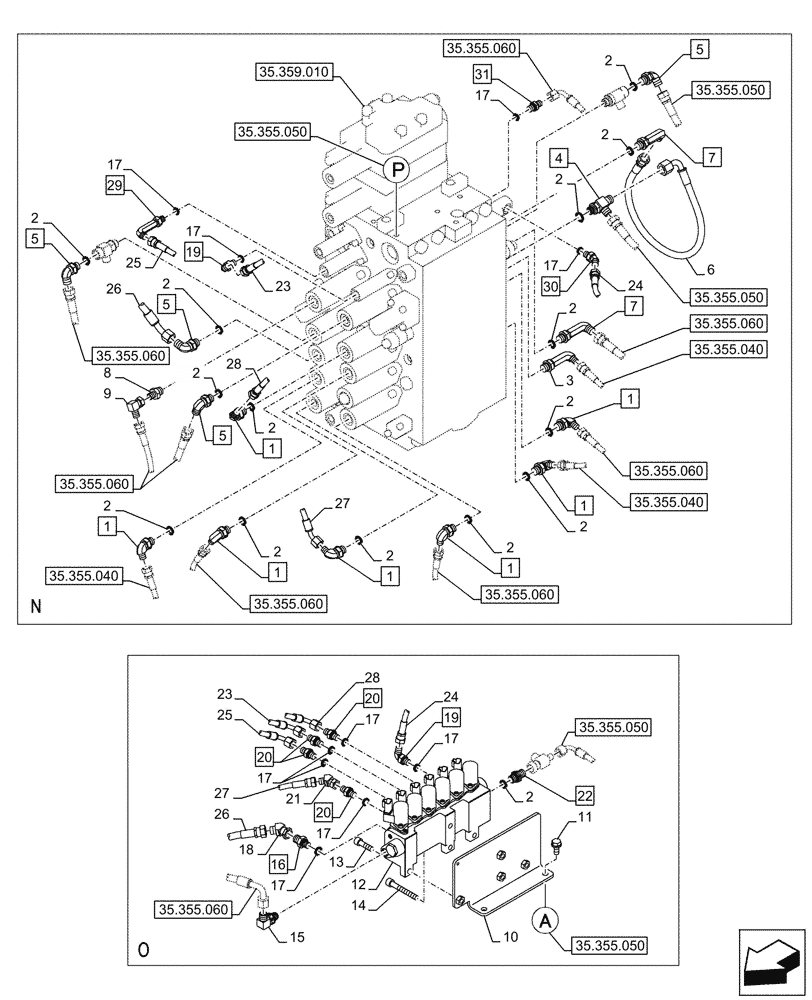

Запчасти Case CX290D LC SL (35.355.070) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 2 (Qty 1)

7шт.

2

150031A1

O-RING,10mm ID x 24mm OD

15шт.

3

KHJ28880

ELBOW

G3/8" x G1/4" x 75mm

1шт.

4

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8" x G1/4", Incl 2 (Qty 1)

1шт.

5

KHJ28590

ELBOW

ASSY, G3/8" x G1/4", Incl 2 (Qty 1)

4шт.

6

KHJ2148

HOSE

9mm ID x 550mm

1шт.

7

KHJ28820

ELBOW

ASSY, G3/8" x G3/8" x 75mm, Incl 2 (Qty 1)

2шт.

8

KHJ27920

ORIFICE

1шт.

9

163814A1

ELBOW

1шт.

10

KBJ26250

BRACKET

1шт.

11

166052A1

BOLT

M10 x 25mm

2шт.

12

KHJ28520

VALVE

1шт.

13

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

3шт.

14

108R010Y075R

BOLT

M10 x 75mm

1шт.

15

KHJ29610

ELBOW

G3/8" x G3/8"

1шт.

16

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 27 (Qty 1)

1шт.

17

150960A1

O-RING,10.8mm ID x 2.4mm Width

10шт.

18

KHJ1739

ELBOW

G3/8" x G3/8"

1шт.

19

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 27 (Qty 1)

2шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 27 (Qty 1)

4шт.

21

KHJ1222

ELBOW

1шт.

22

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

1шт.

23

KHJ2181

HOSE

6mm ID x 580mm, from Control Valve to Valve Reducing

1шт.

24

KHJ24870

HOSE ASSY.

6mm ID x 700mm, from Control Valve to Valve Reducing

1шт.

25

KHJ2194

HOSE,6.3mm ID x 650mm L

6mm ID x 650mm, from Control Valve to Valve Reducing

1шт.

26

KHJ28000

HOSE

9mm ID x 600mm, from Control Valve to Valve Reducing

1шт.

27

KHJ14660

HOSE

6mm ID x 700mm, from Control Valve to Valve Reducing

1шт.

28

KHJ2087

HYDRAULIC HOSE,800.00 mm

6mm ID x 800mm, from Control Valve to Valve Reducing

1шт.

29

KHJ28810

ELBOW

ASSY, G1/4" x G1/4" x 75mm, Incl 27 (Qty 1)

1шт.

30

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 27 (Qty 1)

1шт.

31

162366A1

ADAPTER

ASSY, Incl 27 (Qty 1)

1шт.
