Запчасти Case CX290D LC SL (35.355.050) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

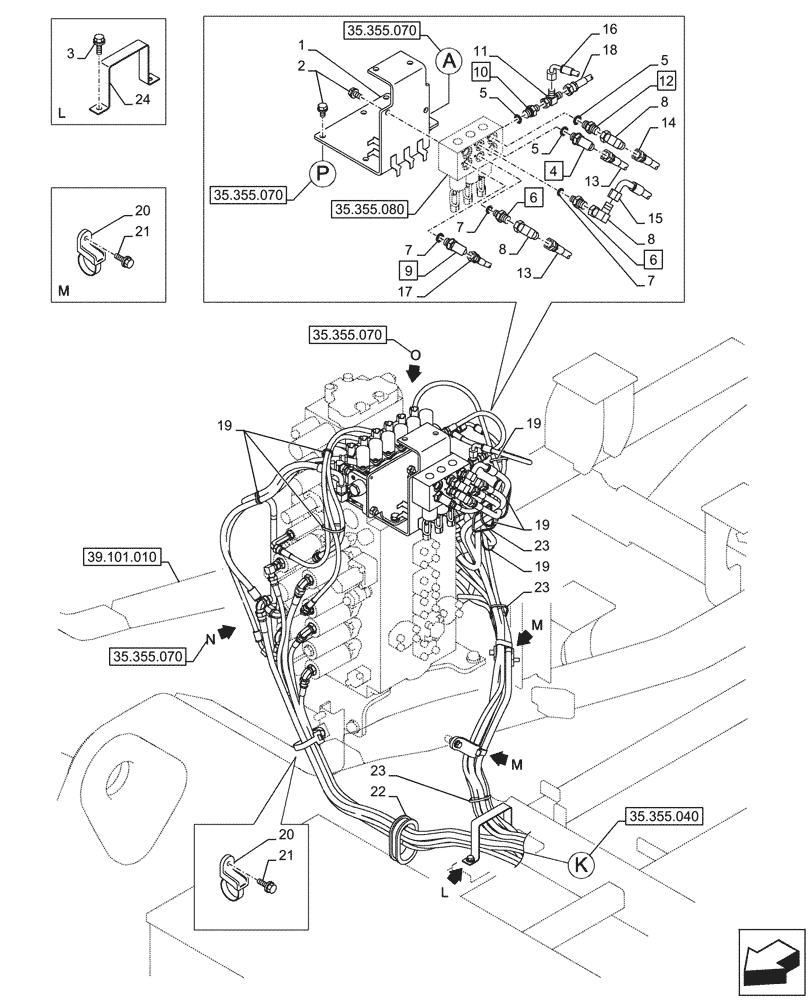

Схема запчастей Case CX290D LC SL - (35.355.050) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.355.080
6
19
5
16
19
5
14
23
8
4
7
2
18
19
20
8
15
13
3
23
13
9
8
11
12
24
10
23
22
7
6
1
5
20
21
21
7
17
19
39.101.010
35.355.070
35.355.070
35.355.070
35.355.070
35.355.040

Артикул

Название

Примечание

Количество

1

KBJ26220

BRACKET

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

6шт.

3

166350A1

BOLT

M8 x 20mm

2шт.

4

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

5

150031A1

O-RING,10mm ID x 24mm OD

3шт.

6

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 7 (Qty 1)

2шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

8

153526A1

ELBOW

3шт.

9

156554A1

ELBOW

ASSY, G3/8" x G1/4", Incl 7 (Qty 1)

1шт.

10

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 5 (Qty 1)

1шт.

11

KHJ2130

TEE

3-G1/4"

1шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

13

KHJ2438

HOSE

9mm ID x 1650mm, from Valve Reducing to Cushion Valve

2шт.

14

KHJ19050

HYDRAULIC HOSE

9mm ID x 630mm, from Valve Reducing to Control Valve

1шт.

15

KHJ13680

HYDRAULIC HOSE

9mm ID x 700mm, from Valve Reducing to Control Valve

1шт.

16

KHJ2179

HOSE

6mm ID x 450mm, from Valve Reducing to Valve Reducing

1шт.

17

KHJ2343

HOSE

6mm ID x 480mm, from Valve Reducing to Valve Reducing

1шт.

18

KHJ1510

HYDRAULIC HOSE

6mm ID x 320mm, from Valve Reducing to Valve Solenoid

1шт.

19

150496A1

MOUNTING CLIP

250mm

8шт.

20

KHR2581

CLAMP

M8

3шт.

21

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

22

KRH10610

SEAL PROTECTION

L=290mm

1шт.

23

150498A1

MOUNTING CLIP

300mm

3шт.

24

KHJ16130

COLLAR

1шт.

Выбрано товаров: 24
