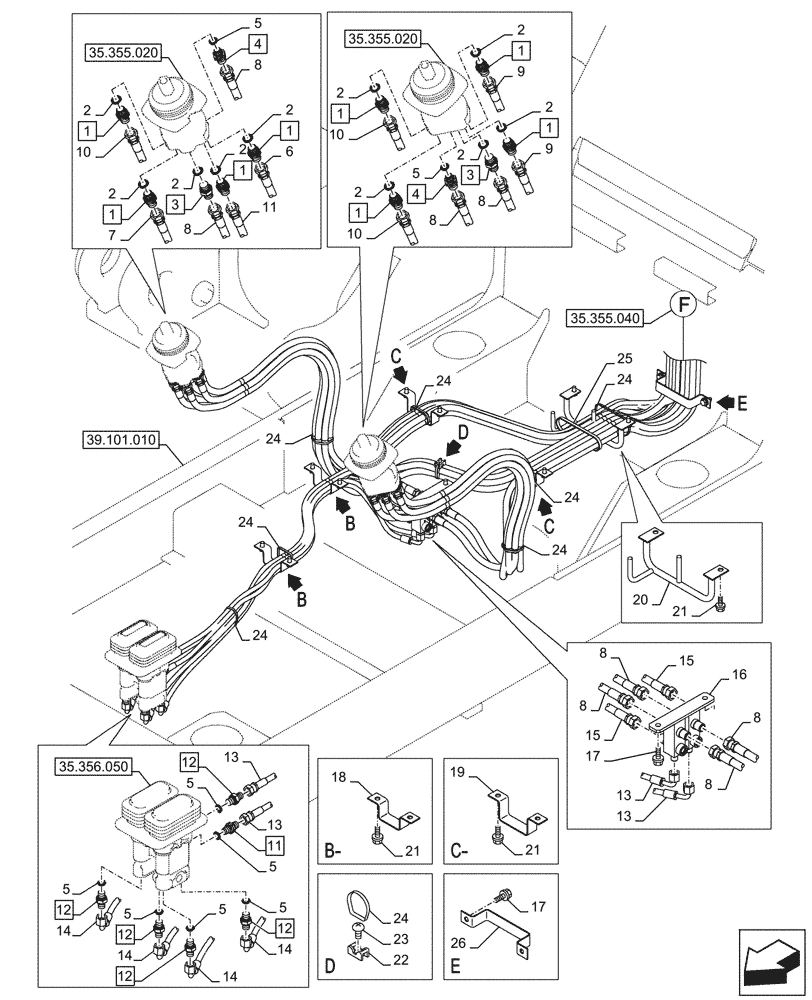

Запчасти Case CX290D LC SL (35.355.030) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

8шт.

2

150031A1

O-RING,10mm ID x 24mm OD

10шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

2шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, G1/4" x G3/8", Incl 5 (Qty 1)

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

6

KHJ37210

HYDRAULIC HOSE

L=5850mm, from Remote Control Valve to Valve Cushion

1шт.

7

KHJ1427

HYDRAULIC HOSE

L=5900mm, from Remote Control Valve to Valve Cushion

3шт.

8

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm, from Remote Control Valve to Manifold

4шт.

9

169160A1

HOSE ASSY.

9mm ID x 5700mm, from Remote Control Valve to Valve Cushion

2шт.

10

KHJ1425

HYDRAULIC HOSE,5800.00 mm

L=5800mm, from Remote Control Valve to Valve Cushion

2шт.

11

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 5 (Qty 1)

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4" , Incl 5 (Qty 1)

5шт.

13

KHJ2093

HOSE

6mm ID x 1150mm, from Remote Control Valve to Manifold

2шт.

14

KHJ35240

HYDRAULIC HOSE

L=5800mm, from Remote Control Valve to Adapter

4шт.

15

168615A1

HYDRAULIC HOSE

9mm ID x 5200mm, from Remote Control Valve to Manifold

2шт.

16

KRJ27381

HYDRAULIC MANIFOLD

1шт.

17

166350A1

BOLT

M8 x 20mm

18шт.

18

KHJ1220

COLLAR

2шт.

19

KHJ13770

COLLAR

2шт.

20

KBJ18931

GUIDE

1шт.

21

166345A1

BOLT

M8 x 16mm

10шт.

22

150860A1

COLLAR

1шт.

23

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

24

150498A1

MOUNTING CLIP

300mm

8шт.

25

150071A1

MOUNTING CLIP

380mm

1шт.

26

159039A1

CLAMP

8шт.
