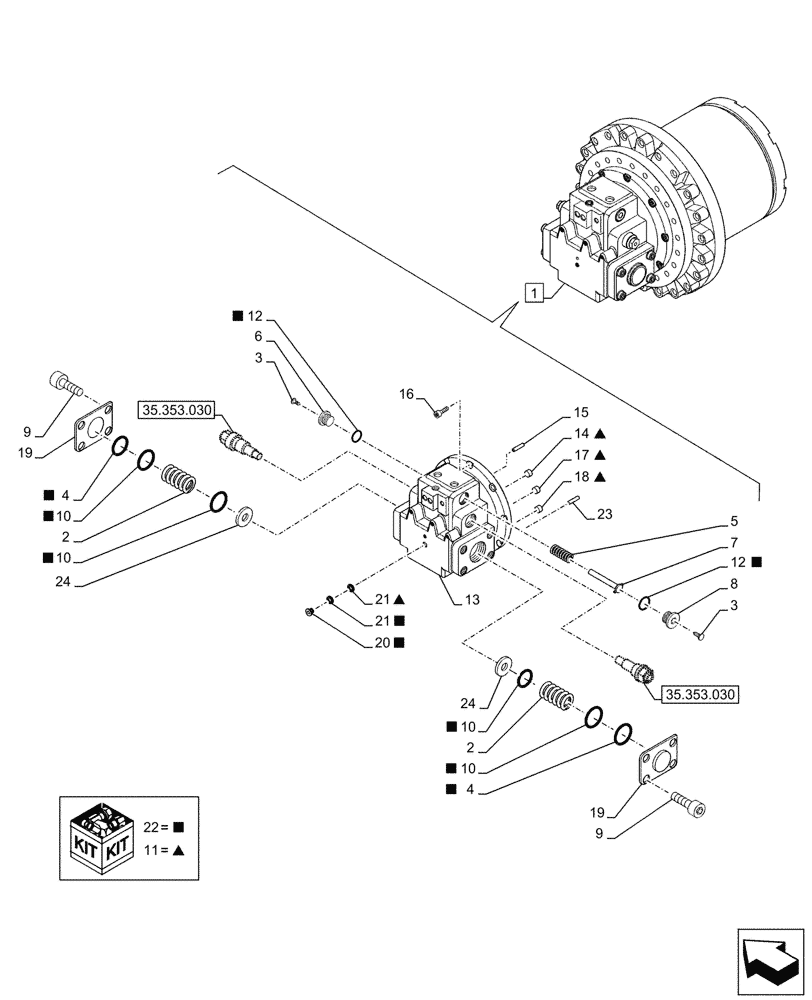

Запчасти Case CX290D LC SL (35.353.020) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBA14710

HYDRAULIC MOTOR

ASSY, Incl 2 - 23

2шт.

See also figure 35.353.010, 35.353.020, 35.353.040, 35.353.050

1шт.

2

LG006200

SPRING

2шт.

3

LR019520

BLOCK

2шт.

4

154589A1

O-RING

1шт.

5

LG00343

COMPRESSION SPRING

1шт.

6

LK00329

PLUG

1шт.

7

LS00127

GUIDE

1шт.

8

LK00306

PLUG

1шт.

9

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

8шт.

10

154495A1

O-RING

4шт.

11

LZ013150

KIT

1шт.

12

154487A1

O-RING

2шт.

13

LZ013140

KIT

1шт.

14

156872A1

ORIFICE

3шт.

15

LA010950

DOWEL

1шт.

16

108R014Z035N

BOLT

10шт.

17

164485A1

ORIFICE

1шт.

18

156880A1

ORIFICE

2шт.

19

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

20

161773A1

PLUG

4шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

22

LZ011370

KIT

1шт.

See also figure 35.353.040, 35.353.050, 35.353.020

1шт.

23

160097A1

COTTER PIN

4шт.

24

156110A1

SPRING SEAT

2шт.
