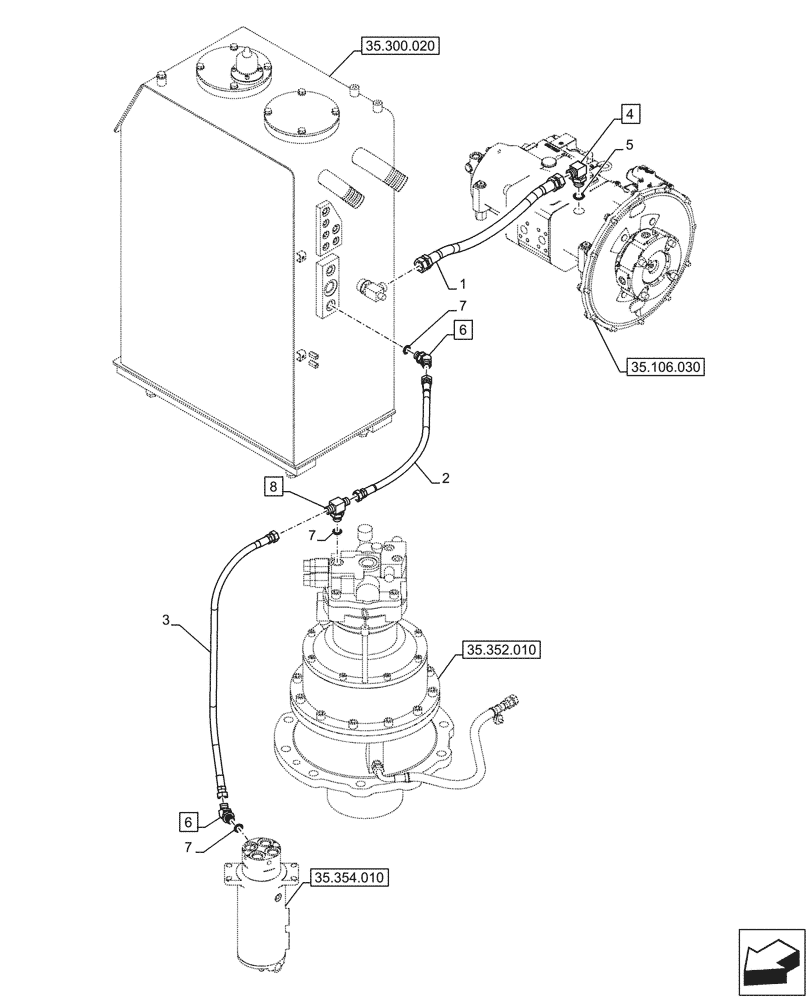

Запчасти Case CX290D LC SL (35.352.050) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

KBJ19120

HYDRAULIC HOSE

640mm, From Hydraulica Pump to Oil Tank

1шт.

2

163805A1

HOSE ASSY.

900mm, From Oil Tank to Motor Swing

1шт.

3

FAJ0399

HYDRAULIC HOSE

12mm ID x 680mm, From Motor Swing to Hydraulic Swivel

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 5

1шт.

5

150542A1

O-RING

1шт.

6

157585A1

ELBOW

ASSY, G3/2" x G3/2", Incl 7 (Qty 1)

2шт.

7

150539A1

O-RING

3шт.

8

169309A1

TEE

ASSY, Incl 7 (Qty 1)

1шт.
