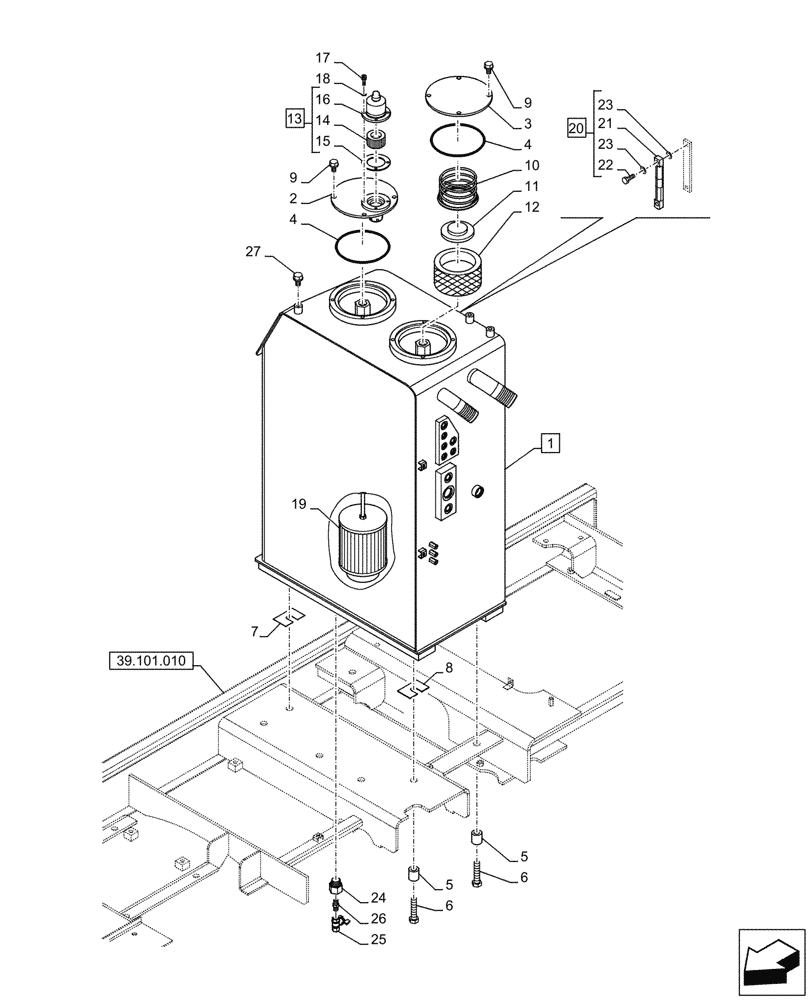

Запчасти Case CX290D LC SL (35.300.020) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

1

KBJ22002

TANK

ASSY, Incl 2 - 4

1шт.

2

KRJ34920

COVER

1шт.

3

159275A1

COVER

1шт.

4

151019A1

O-RING

2шт.

5

153357A1

SPACER

4шт.

6

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

M16 x 70mm

4шт.

7

150166A1

SHIM

1шт.

8

150479A1

SHIM

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

8шт.

10

KRJ6663

SPRING

1шт.

11

159273A1

VALVE

1шт.

12

KRJ20710

HYDRAULIC OIL FILTER

Return Filter

1шт.

13

KHJ22142

BREATHER

ASSY, Incl 14 - 16

1шт.

14

KHJ22152

HYDRAULIC OIL FILTER

Reservoir Breather

1шт.

15

159703A1

GASKET

1шт.

16

KHJ1492

CAP

1шт.

17

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

M6 x 16mm

4шт.

18

892-11006

LOCK WASHER,M6

4шт.

19

KRJ34901

FILTER STRAINER

Inlet

1шт.

20

KHJ36920

GAUGE

ASSY, Incl 21 - 23

1шт.

21

KHJ36930

GAUGE

1шт.

22

159492A1

BOLT

2шт.

23

159493A1

SEALING WASHER

M10

4шт.

24

KHJ16920

STUD

G3/4" X G1/4"

1шт.

25

158923A1

DRAIN VALVE

1шт.

26

150847A1

HYD CONNECTOR

1шт.

27

105R012Y025R

BOLT

M12 x 25mm

1шт.
