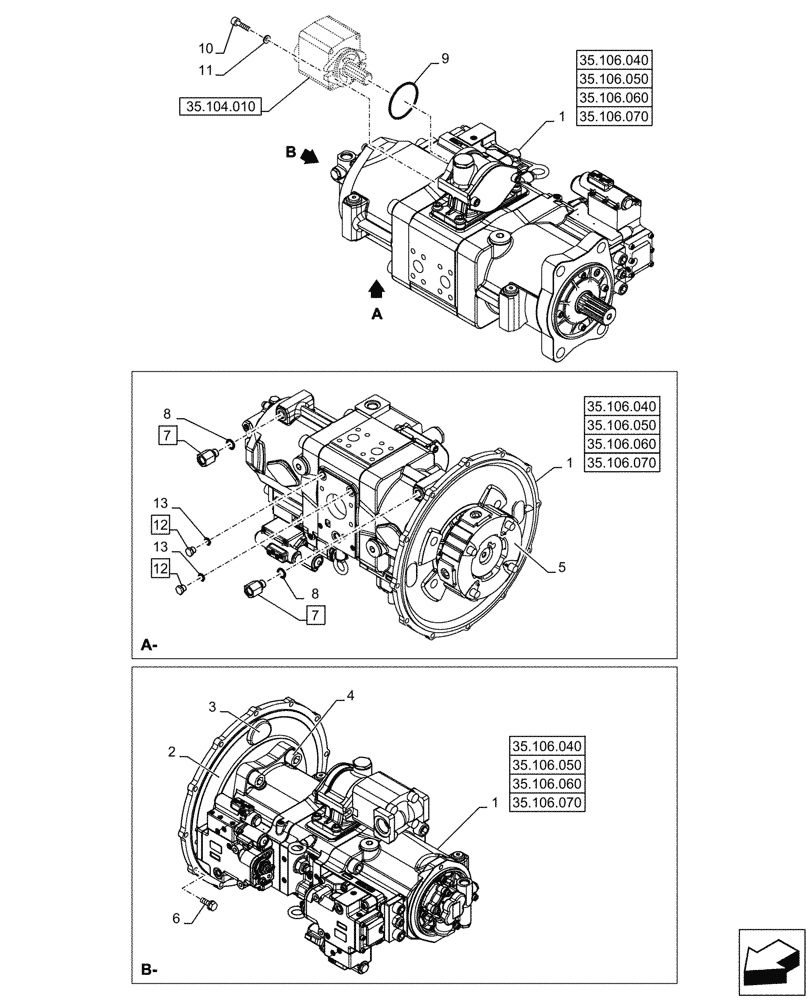

Запчасти Case CX290D LC SL (35.106.030) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ18662

HYDRAULIC PUMP

ASSY

1шт.

2

166370A1

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

5

KRJ29521

HYDRAULIC PUMP

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

11шт.

7

KHJ18190

STUD

ASSY, G3/8" x G3/8", Incl 8

2шт.

8

150031A1

O-RING,10mm ID x 24mm OD

2шт.

9

UCD0096

O-RING

1шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

11

150409A1

WASHER

M10

2шт.

12

159002A1

PLUG

ASSY, G1/4", Incl 13

2шт.

13

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
