(35.106.010) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES

Запчасти Case CX290D LC SL (35.106.010) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

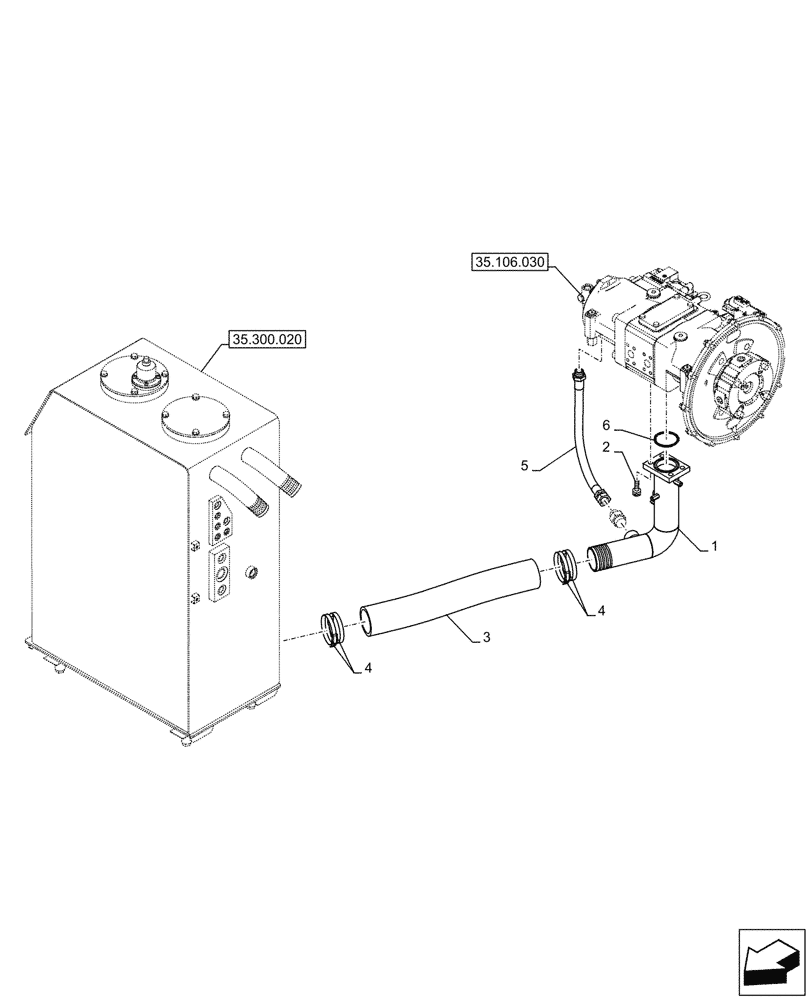

Схема запчастей Case CX290D LC SL - (35.106.010) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS
35.106.030
3
5
4
6
1
2
4
35.300.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19260

PIPE

From Hydraulic Pump to Oil Tank

1шт.

2

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

3

KHJ29830

HOSE

L=570mm, From Hydraulic Pump to Oil Tank

1шт.

4

KHJ32620

CLIP

4шт.

5

KBJ15710

HYDRAULIC HOSE

19mm ID x 510mm

1шт.

6

KRJ1747

O-RING

1шт.
