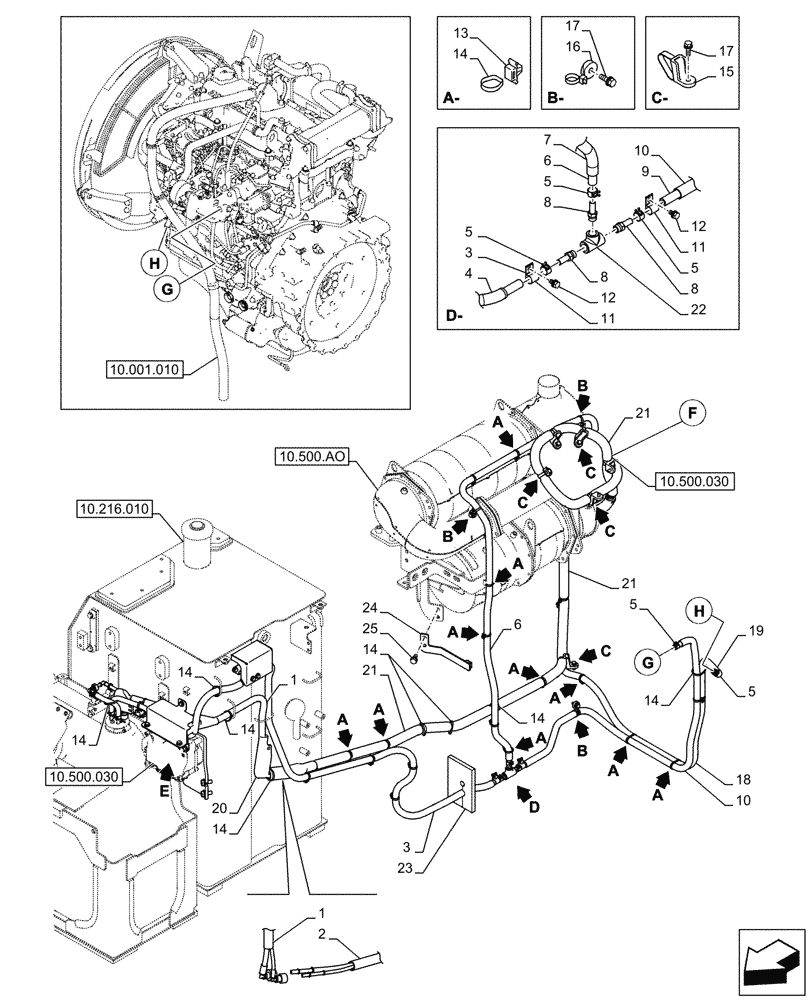

Запчасти Case CX290D LC SL (10.500.020) - DEF/ADBLUE™ LINES (10) - ENGINE

1

KRH16850

PIPE

From Electronic control unit to Engine

1шт.

2

KRH17381

PIPE

From Electronic control unit to Engine

1шт.

3

KHH15980

HOSE

11mm ID x 2000mm, From Valve to Muffler

1шт.

4

KHR13390

PLASTIC-RUBBER TUBE

19mm ID x 1900mm

1шт.

5

KHH16800

BAND

8шт.

6

KHH18010

HOSE

11mm ID x 2100mm, to Muffler

1шт.

7

158065A1

PLASTIC-RUBBER TUBE

19mm ID x 2000mm

1шт.

8

KRR21150

NIPPLE

3/8"

3шт.

9

KHH15970

HOSE

From Electronic control unit to Engine

1шт.

10

KHR13930

PROTECTIVE SLEEVE

19mm ID x 1600mm

1шт.

11

162149A1

COLLAR

2шт.

12

167518A1

BOLT

M8 x 16mm

2шт.

13

KHR10220

MOUNTING CLIP

32шт.

14

150496A1

MOUNTING CLIP

L=250mm

1шт.

15

KHR2581

CLAMP

M8

6шт.

16

KHR2584

CLAMP

M8

4шт.

17

KHJ1215

BOLT,Spcl

M8 x 25mm

10шт.

18

KHH18020

HOSE

From Muffler to Engine

1шт.

19

158067A1

PLASTIC-RUBBER TUBE

19mm ID x 2400mm

1шт.

20

KHH16630

INSULATION

1шт.

21

KHH17950

INSULATION

3шт.

22

152137A1

TEE

1шт.

23

KRH16940

SEAL

1шт.

24

KBH12911

BRACKET

1шт.

25

166052A1

BOLT

M10 x 25mm

2шт.
