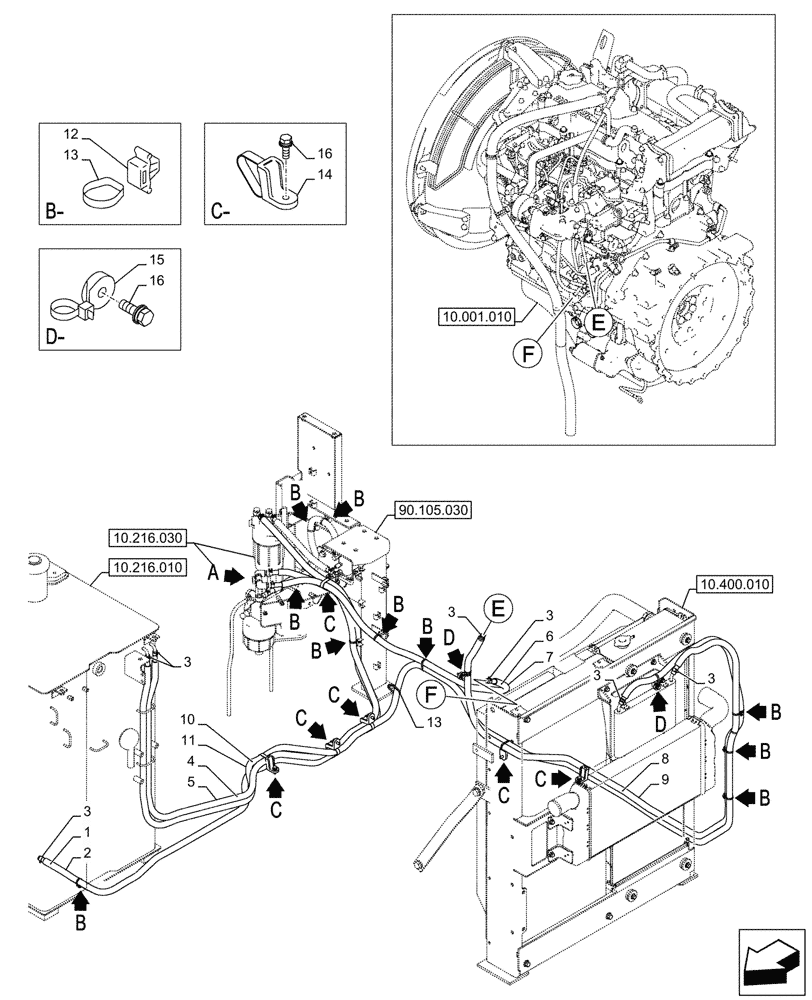

Запчасти Case CX290D LC SL (10.216.020) - FUEL LINE (10) - ENGINE
90.105.030
11
3
1
8
2
6
4
13
13
7
3
3
16
3
3
15
3
5
14
9
16
10
12
10.001.010
10.400.010
10.216.030
10.216.010
№
Артикул
Название
Примечание
Количество
1
KHH16030
HOSE
2950mm, From Fuel Tank to Fuel Filter
1шт.
2
KHR3247
PLASTIC-RUBBER TUBE
19mm ID x 2900mm
1шт.
3
KHH0405
MOUNTING CLIP
8шт.
4
KHH17310
HOSE
L=2900mm, From Fuel Tank to Fuel Filter
1шт.
5
158070A1
PLASTIC-RUBBER TUBE
19mm ID x 2800mm
1шт.
6
KHH17220
HOSE
1400mm, From Engine to Fuel Filter
1шт.
7
158063A1
PLASTIC-RUBBER TUBE
1300mm
1шт.
8
KHH14120
HOSE
3400mm, From Engine to Fuel Cooler
1шт.
9
162635A1
TUBE
19mm ID x 3300mm
1шт.
10
KHH18800
HOSE
From Radiator to Fuel Tank
1шт.
11
KHR44010
TUBE
1шт.
12
KHR10220
MOUNTING CLIP
10шт.
13
150496A1
MOUNTING CLIP
250mm
11шт.
14
KHR2581
CLAMP
M8
6шт.
15
KHR2584
CLAMP
2шт.
16
KHJ1215
BOLT,Spcl
8шт.
