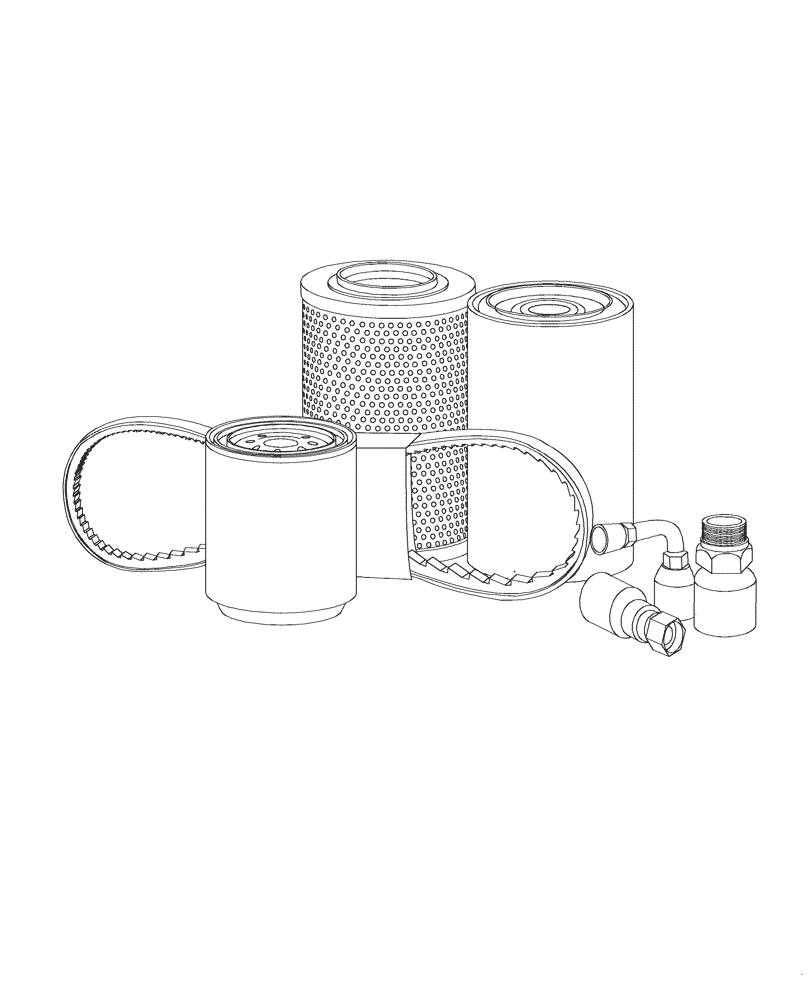

Запчасти Case CX290D LC SL (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

47703428

NOZZLE

Injector Nozzle

1шт.

2

87588091

BELT

1шт.

3

KHR10550

BELT

L=1215mm

1шт.

4

159897A1

RELAY

Battery

1шт.

5

KHR3802

RELAY

24 Volt

1шт.

6

KHR41950

SENSOR

50 MPa

1шт.

7

KHR26940

SENSOR

5 MPa

1шт.

8

KHR2433

SENSOR

Hydraulic Pump Thermo

1шт.

9

KHR2475

WORK LAMP

Halogen, 24V, 70W

1шт.

10

159598A1

PORTABLE LAMP

1шт.

11

KHR16240

WORK LAMP,Halogen, 24V, 70W, Clear

Halogen, 24V, 70W, Clear

1шт.

12

KHR2477

BULB

1шт.

13

KHR39850

FUSE

1шт.

14

KHR39840

FUSE

1шт.

15

KHN16820

WINDSHIELD WIPER

1шт.

16

KHN16830

WIPER ARM

1шт.

17

KHP15130

REAR VIEW MIRROR

1шт.

18

KHR20070

IGNITION KEY

1шт.

19

160403A1

O-RING,154mm ID x 8mm Width

1шт.

20

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

21

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

22

84364501

RELAY

Starter

1шт.

23

87384054

RELAY

Glow Plug

1шт.

24

87597867

SENSOR

Oil Pressure Sensor

1шт.

25

47430433

TEMPERATURE SENDER

Dpd

1шт.

26

47430434

TEMPERATURE SENDER

Dpd

1шт.

27

84364495

TEMPERATURE SENDER

Mass Air Temperature Sensor (MAF)

1шт.

28

47703115

SENSOR

Def Dcm Exhaust Temperature Sensor

1шт.

29

47679029

SENSOR

Manifold Air Temperature Sensor

1шт.

30

47866868

SENSOR

Def Dcm Exh Nox Sensor

1шт.

31

47703146

FILTER

Supply Module

1шт.

32

KBH16740

SENSOR

Urea

1шт.
