(90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH

Запчасти Case CX290D LC SL (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

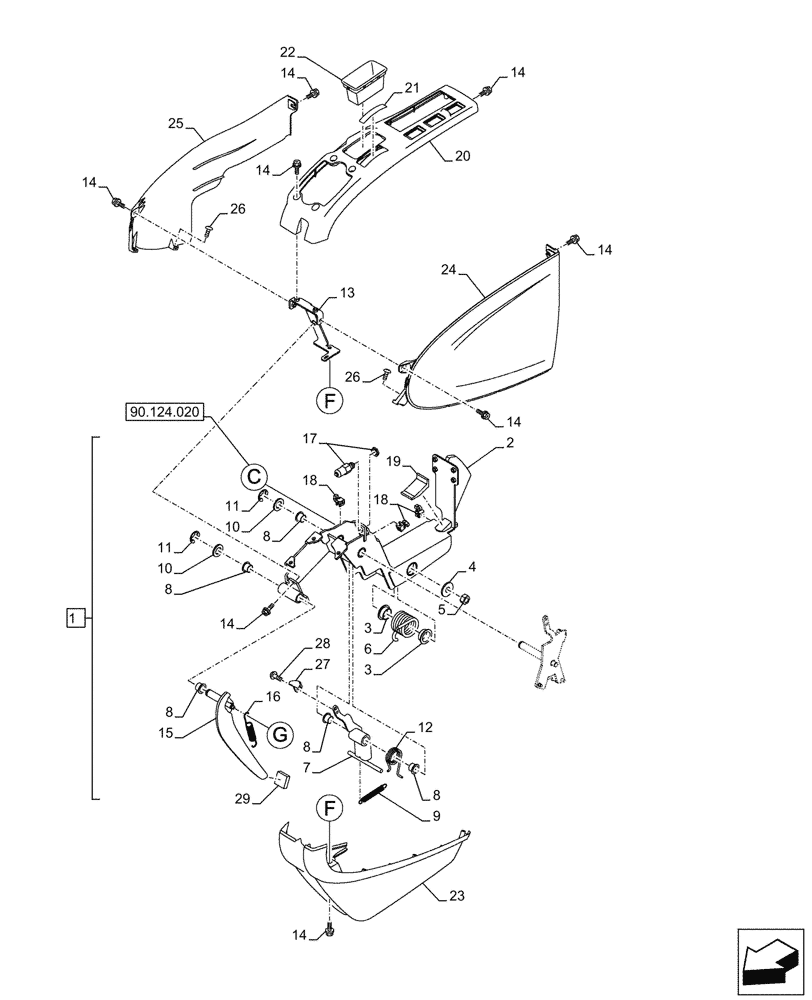

Схема запчастей Case CX290D LC SL - (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.020
14
10
23
12
10
14
18
22
8
28
21
18
15
11
14
11
17
3
9
16
8
6
24
8
27
14
14
26
25
14
20
19
13
8
3
14
7
2
14
29
1
26
4
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN41881

BOX

ASSY, Incl 2 - 19

1шт.

See also Figure 90.124.010, 90.124.020, 90.160.020, 90.160.040

1шт.

2

KHN39721

FRAME

1шт.

3

KHN2261

BUSHING

2шт.

4

151161A1

WASHER

M12

1шт.

5

162R012VR

NUT

M12

1шт.

6

KHN24001

SPRING

1шт.

7

KHN24021

BELLCRANK

1шт.

8

KHN2249

BUSHING

6шт.

9

KHN26200

SPRING

1шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

KHN2270

LOCKING RING

2шт.

12

KHN13290

SPRING

1шт.

13

KHN24130

BRACKET, SUPPORTING

1шт.

14

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

20шт.

15

KHN13331

LEVER

1шт.

16

KHN13350

SPRING

1шт.

17

KHR14930

LIMIT SWITCH

1шт.

18

KHN17050

CLIP

3шт.

19

KHN43110

SEAL

1шт.

20

KHN23150

COVER

1шт.

21

KHN16770

DECAL

1шт.

22

KHN23770

CASE

1шт.

23

KHN23170

COVER

1шт.

24

KHN12340

COVER

1шт.

25

KHN23190

COVER

1шт.

26

KHR2737

SELF-TAP SCREW

6шт.

27

KHN12370

LEVER

1шт.

28

KHN23760

SCREW

4шт.

29

KHN17560

SEAL

1шт.
