(90.118.010) - STD + VAR - 488031 - HANDRAIL, PRE-CLEANER CYCLONE TYPE

Запчасти Case CX290D LC SL (90.118.010) - STD + VAR - 488031 - HANDRAIL, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

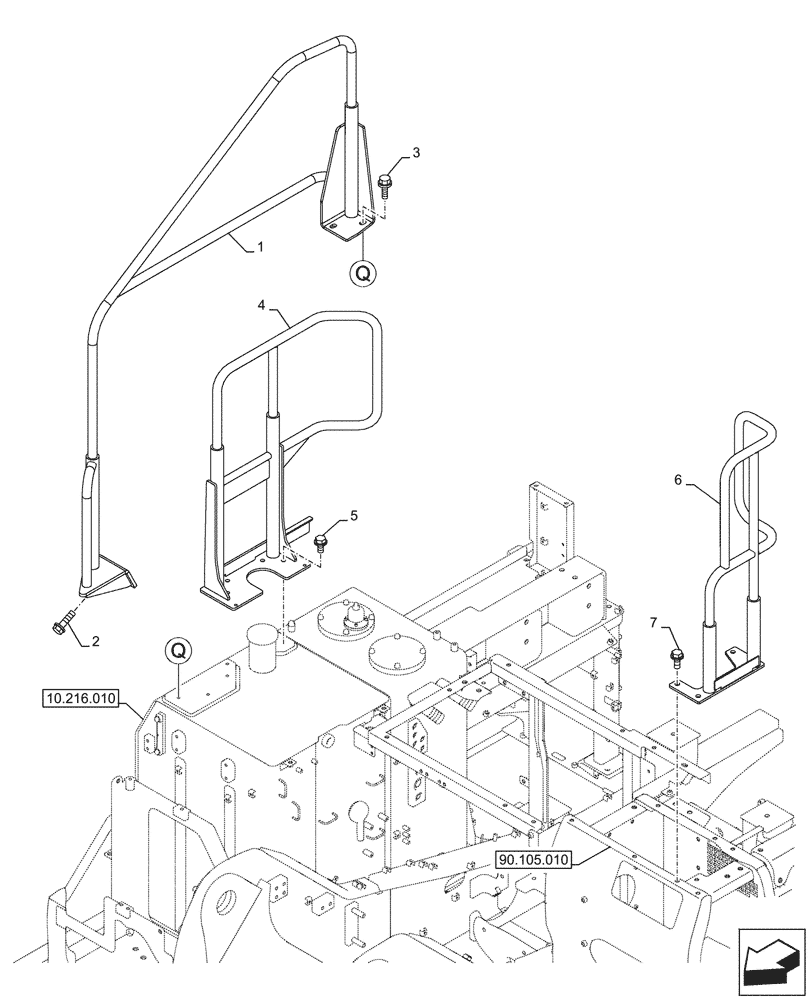

Схема запчастей Case CX290D LC SL - (90.118.010) - STD + VAR - 488031 - HANDRAIL, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.216.010
5
7
2
1
3
4
6
90.105.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN39810

STAY

1шт.

2

KHN48480

BOLT

M12 x 40mm

3шт.

3

KHN48470

BOLT

M12 x 25mm

2шт.

4

KBN19891

GUARD

1шт.

5

105R012Y025R

BOLT

M12 x 25mm

4шт.

6

KBN24880

COVER

1шт.

7

166352A1

BOLT

M12 x 30mm

4шт.
