(90.116.020) - GUARD, FRAME, LOWER

Запчасти Case CX290D LC SL (90.116.020) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

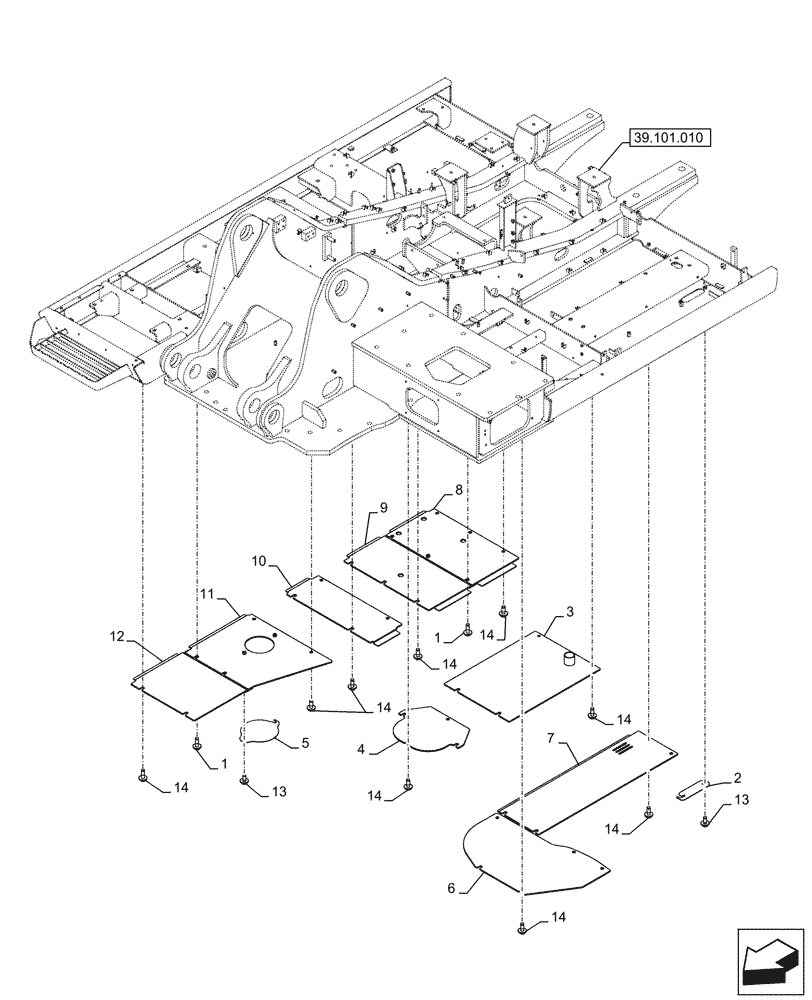

Схема запчастей Case CX290D LC SL - (90.116.020) - GUARD, FRAME, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.010
8
6
1
14
2
14
14
1
3
10
5
14
14
13
9
7
14
4
14
13
11
12
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162278A1

BOLT

4шт.

2

KBB17380G4

COVER

1шт.

3

KBB19720G4

COVER

1шт.

4

KBB19730G4

COVER

1шт.

5

KBB19740G4

COVER

1шт.

6

KBB19750G4

COVER

1шт.

7

KBB19760G4

COVER

1шт.

8

KBB19771G4

COVER

1шт.

9

KBB19781G4

COVER

1шт.

10

KBB19790G4

COVER

1шт.

11

KBB19800G4

COVER

1шт.

12

KBB19810G4

COVER

1шт.

13

KHN26490

BOLT

4шт.

14

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

32шт.
