(90.105.060) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE

Запчасти Case CX290D LC SL (90.105.060) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

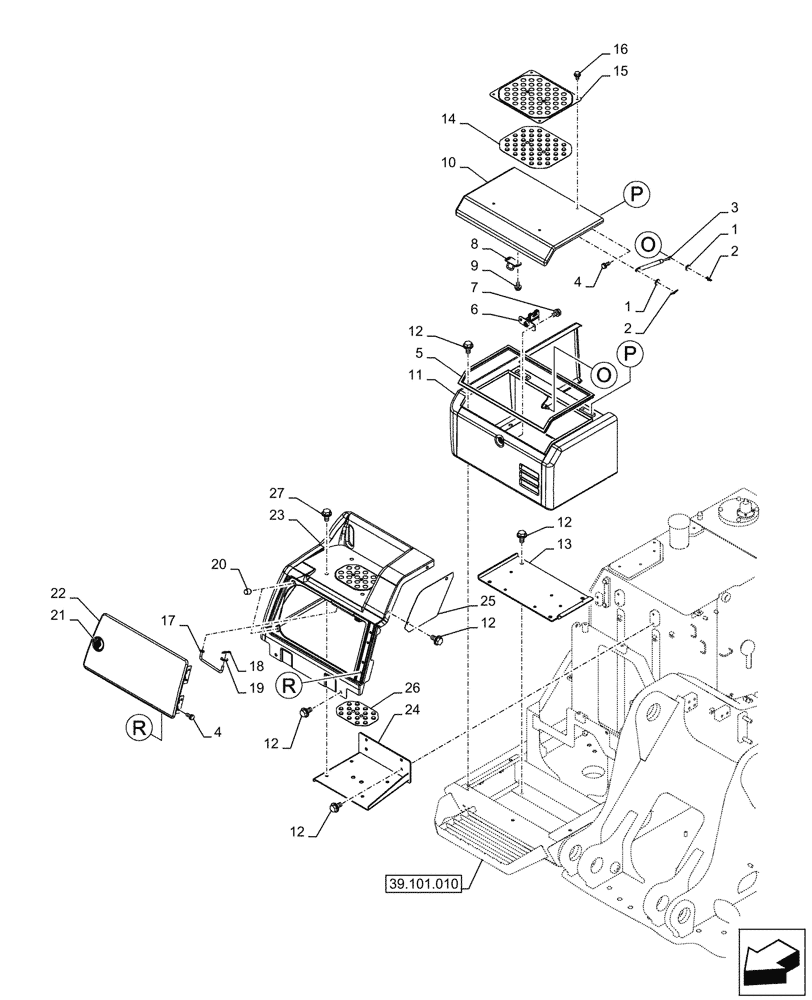

Схема запчастей Case CX290D LC SL - (90.105.060) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.010
25
26
11
22
24
19
12
1
6
1
10
12
21
4
3
16
20
5
8
12
9
15
2
27
14
4
12
7
18
13
17
12
2
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

2

153077A1

COTTER PIN

2шт.

3

KHN38920

DAMPER

1шт.

4

KAN2771

BOLT,Spcl

8шт.

5

KHN36780

TRIM

1шт.

6

KHN35780

LOCK

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

2шт.

8

KHN12740

SUPPORT

1шт.

9

166350A1

BOLT

M8 x 20mm

2шт.

10

KHN36740G4

COVER

1шт.

11

KHN36750G4

COVER

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

17шт.

13

KBN25260G4

COVER

1шт.

14

KHN10940

RUBBER PAD

2шт.

15

KHN13510B1

COVER

1шт.

16

KHN13540

BOLT,Spcl

4шт.

17

KBN17890

STAY

1шт.

18

153181A1

COTTER PIN

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

20

KHN36290

STOP

2шт.

21

KHN39361

LOCK

1шт.

22

KHN39270G4

COVER

1шт.

23

KHN39260G4

COVER

1шт.

24

KBN19970

BRACKET

1шт.

25

KBN20020G4

COVER

1шт.

26

KHN32810

PLATE

1шт.

27

KHN39331

BOLT

M12 x 25mm

4шт.
