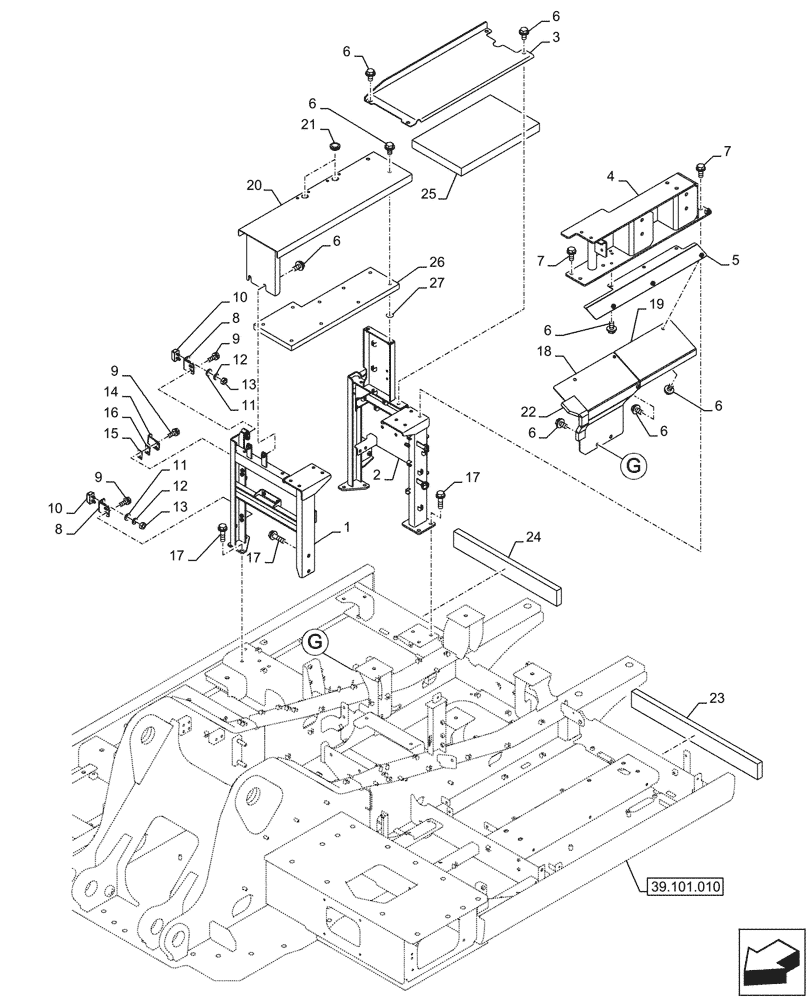

Запчасти Case CX290D LC SL (90.105.030) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KBN19702

FRAME

1шт.

2

KBN19712

FRAME

1шт.

3

KBN19730

COVER

1шт.

4

KBN19720

FRAME

1шт.

5

KBN19740

COVER

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

17шт.

7

166352A1

BOLT

M12 x 30mm

8шт.

8

KHN12660

SUPPORT

2шт.

9

166347A1

BOLT,Sems, M10 x 30mm

6шт.

10

KRN2098

STOP

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

KHN41790

BRACKET

1шт.

15

158749A1

SHIM

T=1.2mm

1шт.

16

152719A1

SHIM

1шт.

17

105R012Y045R

BOLT

M12 x 45mm

9шт.

18

KBN19860

COVER

1шт.

19

KBN19870

COVER

1шт.

20

KBN19882

FRAME

1шт.

21

KBJ0525

GROMMET

2шт.

22

KBN19940

SEAL

1шт.

23

KRN14150

SEAL

1шт.

24

KRN14160

NOISE PROTECTION

1шт.

25

KBN19981

SEAL

1шт.

26

KBN22591

SEAL

1шт.

27

KHN35020

WASHER

9шт.
