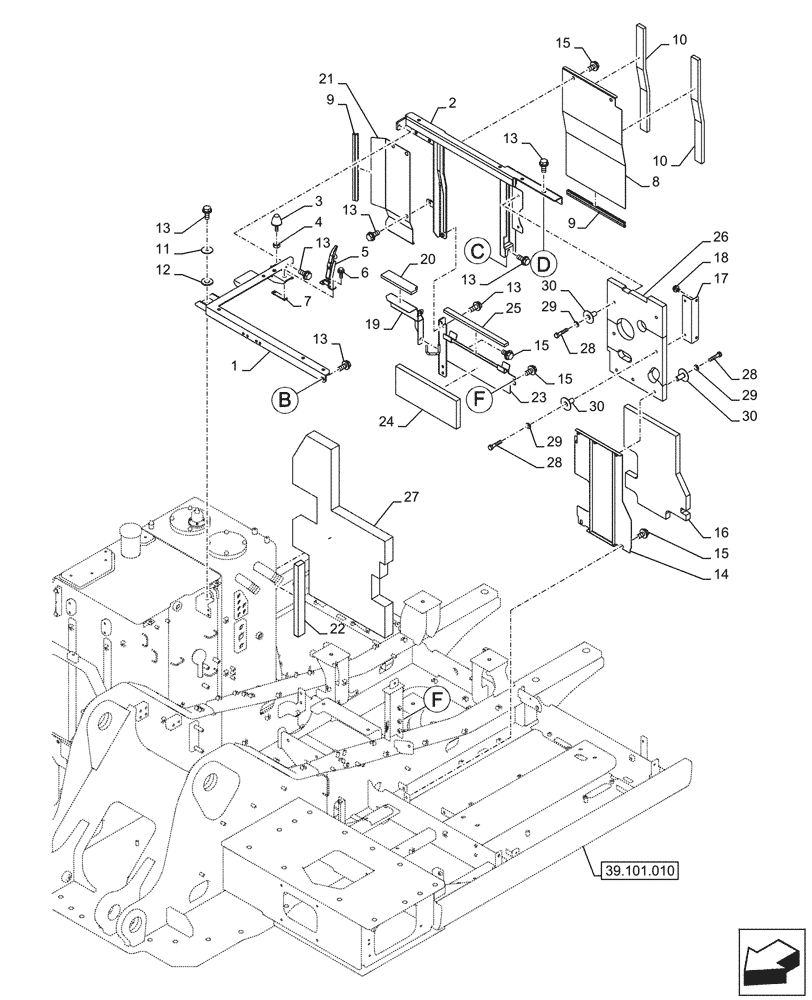

Запчасти Case CX290D LC SL (90.105.020) - STD + VAR - 488031 - HOUSING & COVERS, PRE-CLEANER CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KBN24860

FRAME

1шт.

2

KBN20010

FRAME

1шт.

3

151108A1

STOP

1шт.

4

KBH0446

NUT

M10 x 1.25

1шт.

5

152423A1

LATCH

1шт.

6

167182A1

BOLT,Sems, M8 x 25mm

2шт.

7

KHN24200

PLATE

1шт.

8

KBN16510

COVER

1шт.

9

HKH0048

SEAL

2шт.

10

KBN16520

INSULATION

2шт.

11

KHN39790

WASHER

1шт.

12

KHN39780

WASHER

, Serial Range: -C0567

1шт.

12

KBN25810

WASHER

, Start Serial: D0567

1шт.

13

166352A1

BOLT

M12 x 30mm

9шт.

14

KBN19820

COVER

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

16

KBN19830

SEAL

1шт.

17

KBN24500

BRACKET

1шт.

18

166345A1

BOLT

M8 x 16mm

2шт.

19

KBN19840

COVER

1шт.

20

KBN20060

SEAL

1шт.

21

KBN19530

COVER

1шт.

22

KSN14740

SEAL PROTECTION

1шт.

23

KBN19520

COVER

1шт.

24

KBN19810

SEAL

1шт.

25

KBN16410

SEAL

1шт.

26

KBN19930

SEAL

1шт.

27

KBN19500

INSULATION

1шт.

28

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

M8 x 40mm

7шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

30

KHH0358

RETAINER

7шт.
