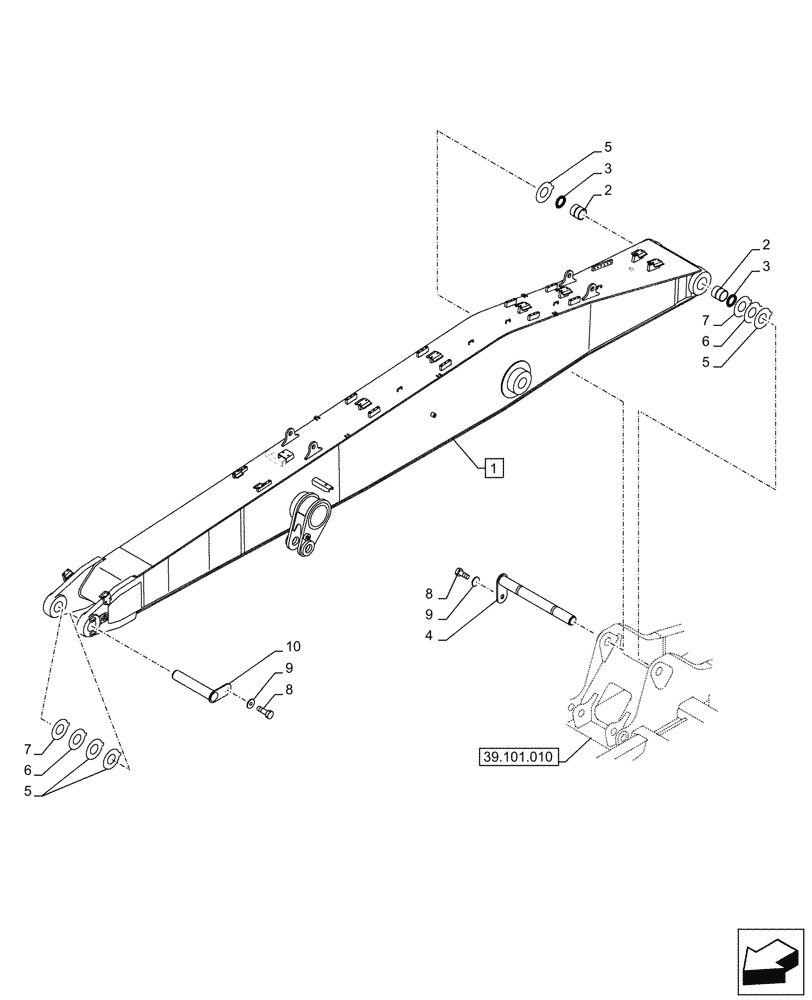

Запчасти Case CX290D LC SL (84.910.010) - VAR - 461032 - BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

KBV39250

BOOM

ASSY, Incl 2 - 3

1шт.

2

KBV1360

SELF LUB RING

2шт.

3

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

4

KBV25790

PIN

1шт.

5

KBV11190

SHIM,1mm Thk

T=1mm

2шт.

6

KBV11200

SHIM,2mm Thk

T=2mm

1шт.

7

KBV24250

SHIM

T=1.5mm

1шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

1шт.

9

157141A1

WASHER

1шт.

10

KBV25800

PIN

1шт.
