(55.988.020) - DEF/ADBLUE™ TANK, LEVEL SENSOR

Запчасти Case CX290D LC SL (55.988.020) - DEF/ADBLUE™ TANK, LEVEL SENSOR (55) - ELECTRICAL SYSTEMS

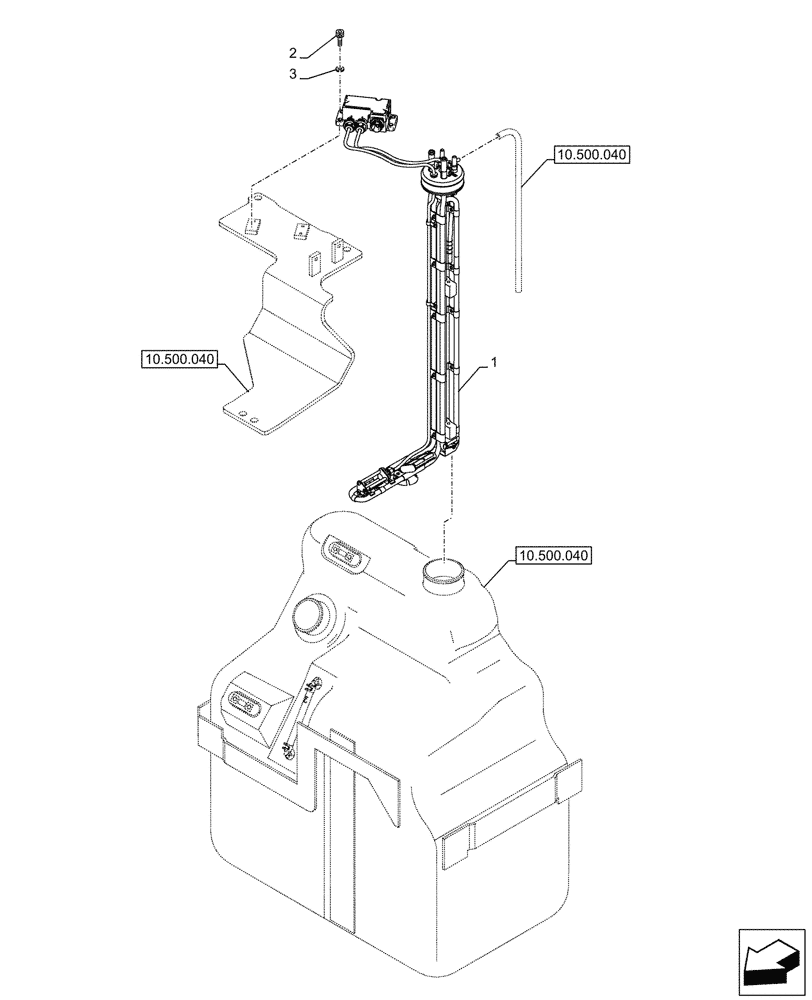

Схема запчастей Case CX290D LC SL - (55.988.020) - DEF/ADBLUE™ TANK, LEVEL SENSOR (55) - ELECTRICAL SYSTEMS
10.500.040
2
3
1
10.500.040
10.500.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBH14321

SENSOR

, Serial Range: -C0575

1шт.

See also figure 10.500.040. Part in included in Tank Urea Assembly PN KBH16770

1шт.

1

KBH16740

SENSOR

, Start Serial: D0575

1шт.

Part in included in Tank Urea Assembly PN KBH14691

1шт.

2

108R006Y020R

BOLT

M6 x 20mm

4шт.

3

183-106VR

SPRING WASHER

4шт.
