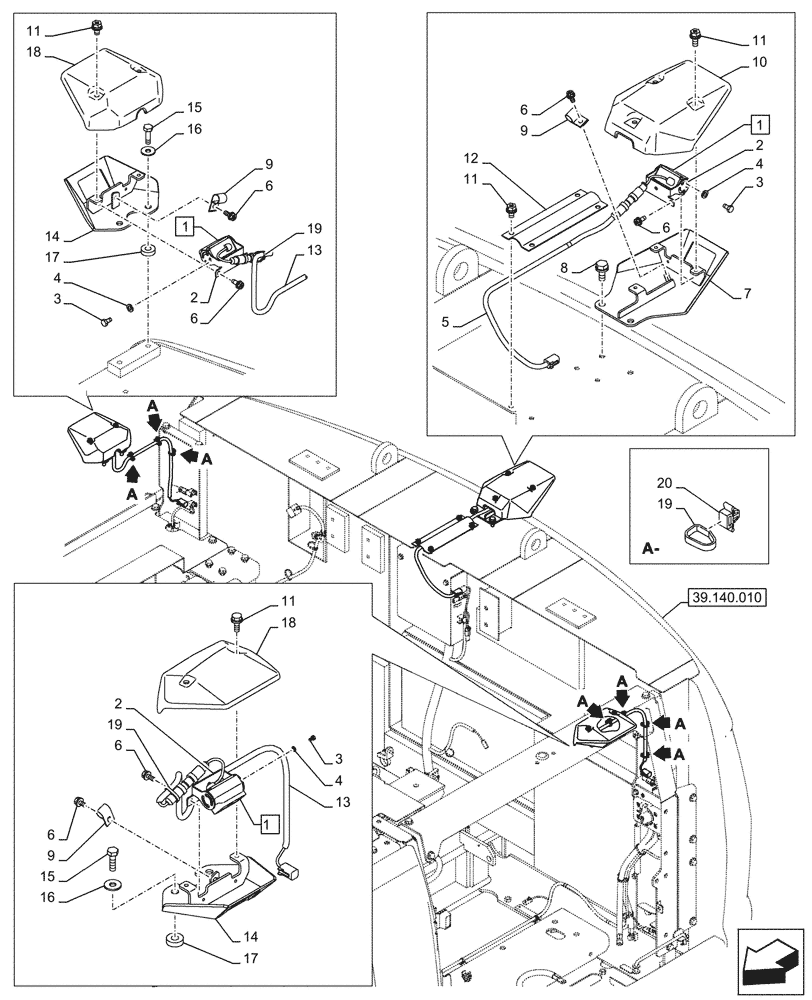

Запчасти Case CX290D LC SL (55.530.030) - VAR - 488055 - REAR VIEW CAMERA, SIDE CAMERA (55) - ELECTRICAL SYSTEMS

1

KHR23830

VIDEO CAMERA

ASSY, Incl 2 - 4

1шт.

2

KHR28180

BRACKET

3шт.

3

KHR28190

BOLT

M4 x 10mm

12шт.

4

KHR28200

BUSHING

12шт.

5

KHR40560

WIRE HARNESS

CCD 600mm

1шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

9шт.

7

KHR40220B1

BRACKET

1шт.

8

166052A1

BOLT

M10 x 25mm

2шт.

9

157806A1

COLLAR

3шт.

10

KHR39560

COVER

1шт.

11

KHN2308

SCREW

M8 x 16mm

11шт.

12

KHR40240

COVER

1шт.

13

KHR43310

WIRE HARNESS

CCD 700mm

2шт.

14

KHR40230B1

BRACKET

2шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 35mm

4шт.

16

150861A1

WASHER

4шт.

17

KHR40260B1

SPACER

4шт.

18

KHR39570

COVER

2шт.

19

150496A1

MOUNTING CLIP

250mm

9шт.

20

KHR10220

MOUNTING CLIP

7шт.
