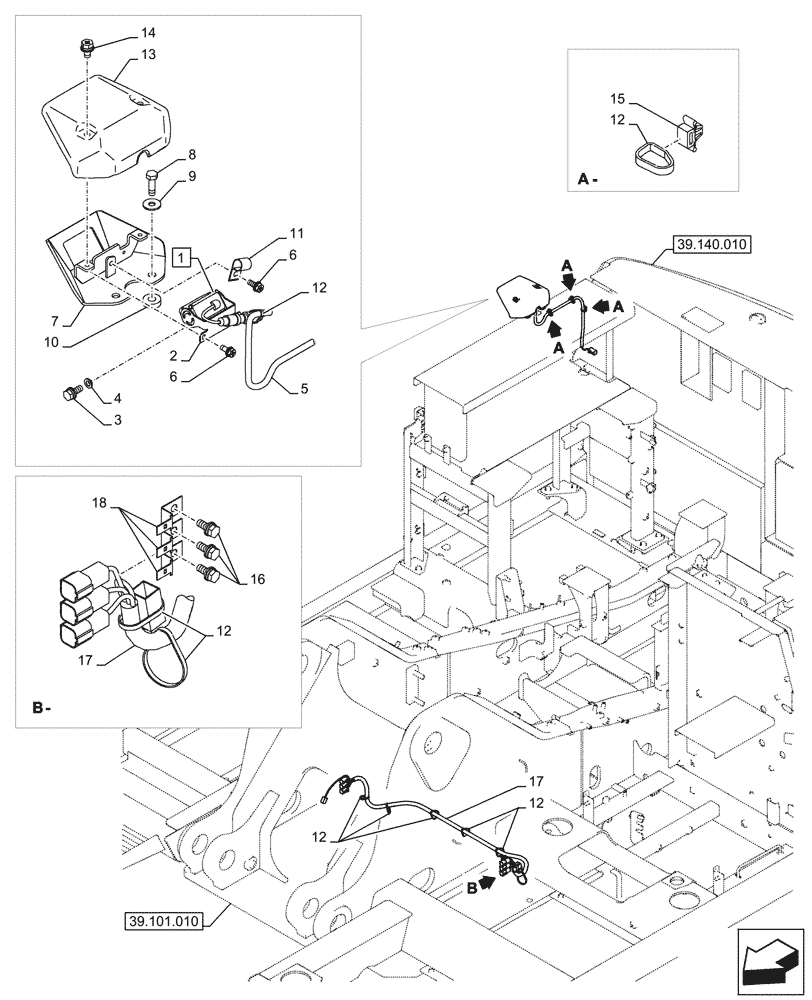

Запчасти Case CX290D LC SL (55.530.020) - VAR - 461560 - RIGHT SIDE VIEW CAMERA (55) - ELECTRICAL SYSTEMS

1

KHR23830

VIDEO CAMERA

ASSY, Incl 2 - 4

1шт.

2

KHR28180

BRACKET

1шт.

3

KHR28190

BOLT

M4 x 10mm

4шт.

4

KHR28200

BUSHING

4шт.

5

KHR43310

WIRE HARNESS

CCD 700mm

1шт.

6

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

3шт.

7

KHR40230B1

BRACKET

1шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 35mm

2шт.

9

150861A1

WASHER

2шт.

10

KHR40260B1

SPACER

2шт.

11

157806A1

COLLAR

1шт.

12

150496A1

MOUNTING CLIP

250mm

11шт.

13

KHR39570

COVER

1шт.

14

KHN2308

SCREW

M8 x 16mm

2шт.

15

KHR10220

MOUNTING CLIP

3шт.

16

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

3шт.

17

KBR15890

WIRE HARNESS

1шт.

18

165405A1

CLIP

3шт.
