(55.404.060) - VAR - 488135 - WORKING LIGHT, FRONT LIGHT

Запчасти Case CX290D LC SL (55.404.060) - VAR - 488135 - WORKING LIGHT, FRONT LIGHT (55) - ELECTRICAL SYSTEMS

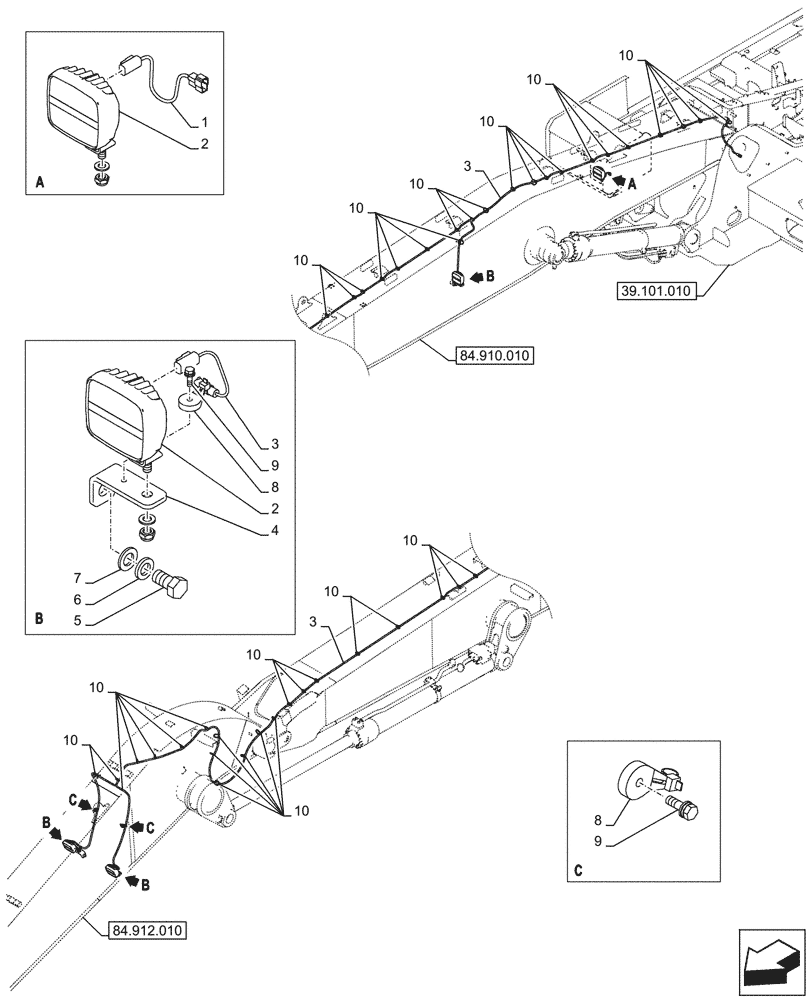

Схема запчастей Case CX290D LC SL - (55.404.060) - VAR - 488135 - WORKING LIGHT, FRONT LIGHT (55) - ELECTRICAL SYSTEMS
84.910.010
8
10
4
10
3
10
10
10
2
10
7
10
2
6
10
1
10
8
10
10
3
9
9
3
5
10
84.912.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR44370

WIRE HARNESS

1шт.

2

KHR49790

LAMP

20W 1200Lm

4шт.

3

KHR50720

WIRE HARNESS

1шт.

4

KHR49940

BRACKET

Led

3шт.

5

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

M16 x 30mm

3шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

3шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

8

KHR2583

CLAMP

5шт.

9

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6 x 20mm

5шт.

10

150496A1

MOUNTING CLIP

250mm

1шт.
