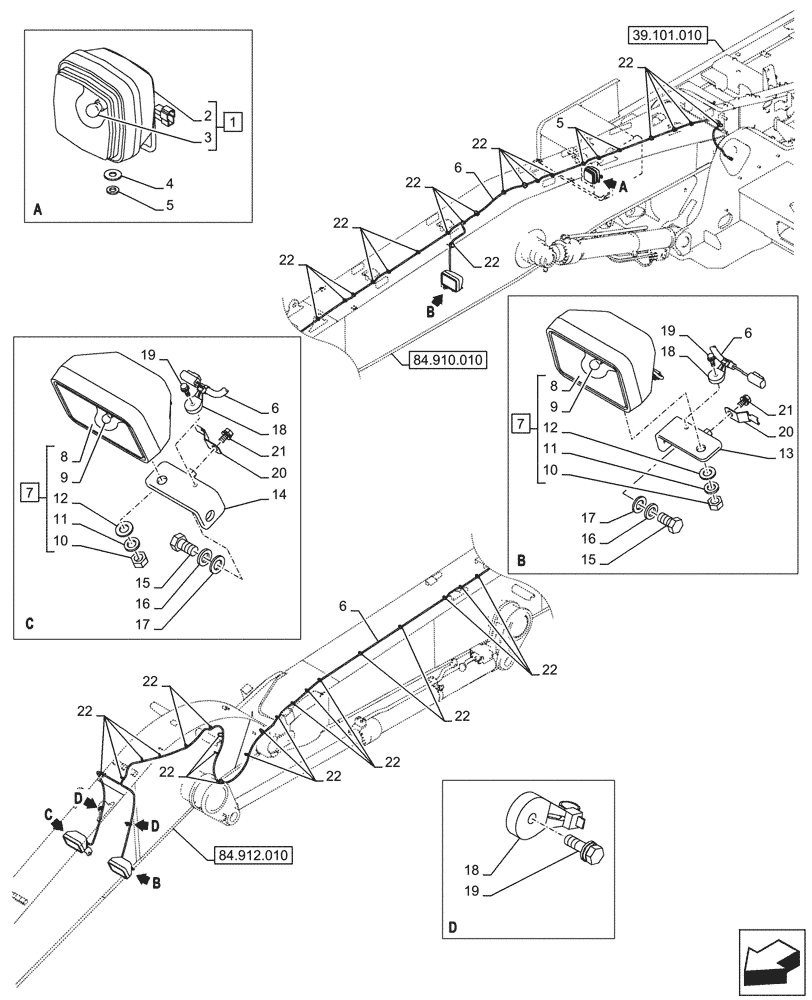

Запчасти Case CX290D LC SL (55.404.050) - VAR - 488134 - WORKING LIGHT, FRONT LIGHT (55) - ELECTRICAL SYSTEMS

1

KHR2475

WORK LAMP

ASSY, Incl 2 - 3 24V x 70W

1шт.

2

KHR2476

WORK LAMP

1шт.

3

KHR2477

BULB

1шт.

4

KHN0539

WASHER

M8

1шт.

5

183-108VR

SPRING WASHER

1шт.

6

KHR50720

WIRE HARNESS

1шт.

7

KHR50220

LAMP

ASSY, Incl 8 - 12 70W

3шт.

8

KHR25390

LENS

3шт.

9

152812A1

BULB

3шт.

10

167034A1

NUT

M14 x 1.5

3шт.

11

892-16014

LOCK WASHER,M14, Hvy

3шт.

12

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

3шт.

13

KHR50060

BRACKET

2шт.

14

KHR50070

BRACKET

1шт.

15

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

M16 x 30mm

3шт.

16

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

3шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

18

KHR2583

CLAMP

5шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6 x 20mm

5шт.

20

KHR3748

COLLAR

3шт.

21

167518A1

BOLT

M8 x 16mm

3шт.

22

150496A1

MOUNTING CLIP

250mm

1шт.
