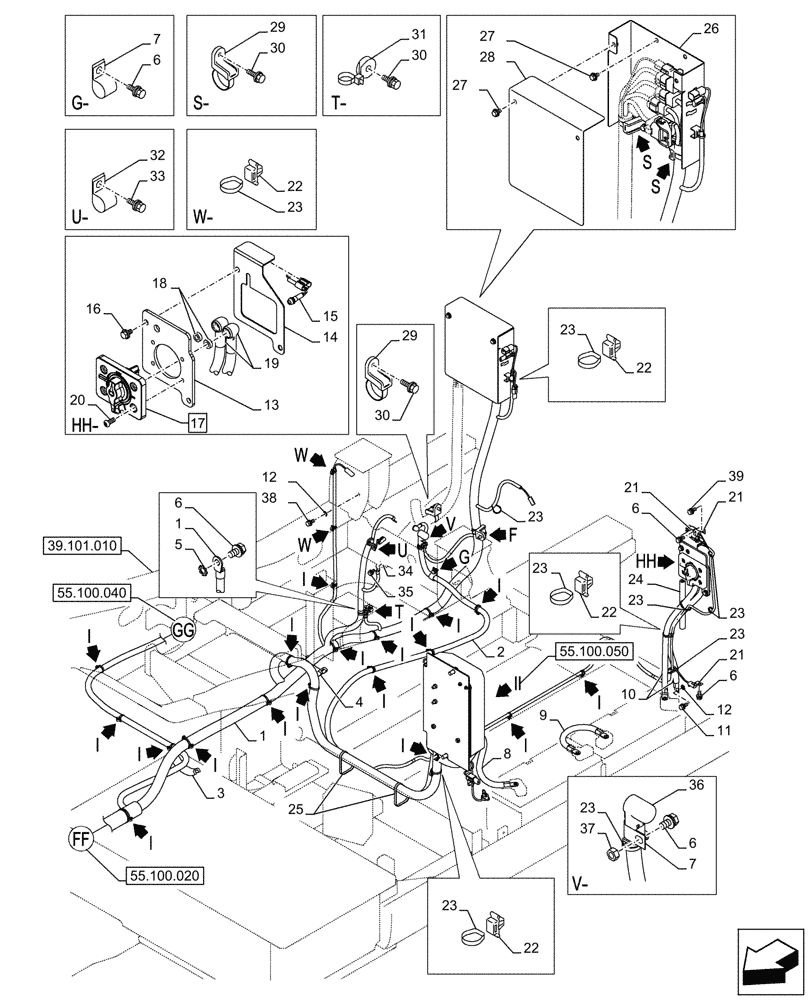

Запчасти Case CX290D LC SL (55.100.030) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KBR15102

WIRE HARNESS

1шт.

2

KHR39670

POS BATTERY CABLE

1шт.

3

KEJ0474

FLEXIBLE SHEATH

L=110mm

1шт.

4

KRR12850

SEAL PROTECTION

L=105mm

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

6

167518A1

BOLT

M8 x 16mm

5шт.

7

162150A1

CLAMP

2шт.

8

KHR12150

ELECTRIC CABLE

1шт.

9

KHR32560

POS BATTERY CABLE

1шт.

10

KHR36520

POS BATTERY CABLE

2шт.

11

166346A1

BOLT,Sems, M10

M10 x 16mm

1шт.

12

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

13

KRR21921

BRACKET

1шт.

14

KRR23740

BRACKET

1шт.

15

KHR47290

WORK LAMP

Led

1шт.

16

166350A1

BOLT

M8 x 20mm

2шт.

17

KHR34681

ROTARY SWITCH

ASSY, Incl 18

1шт.

18

KHR49150

SPACER

1шт.

19

KHR39760

CAP

2шт.

20

KHR37580

BOLT

M8 x 20mm

4шт.

21

158962A1

CLIP

3шт.

22

KHR10220

MOUNTING CLIP

5шт.

23

150496A1

MOUNTING CLIP

250mm

13шт.

24

HKJ0042

SEAL PROTECTION

L=200mm

1шт.

25

150071A1

MOUNTING CLIP

380mm

2шт.

26

KRR21941

BRACKET

1шт.

27

166345A1

BOLT

M8 x 16mm

4шт.

28

KRR21951

COVER

1шт.

29

KHR2581

CLAMP

M8

3шт.

30

KHJ1215

BOLT,Spcl

M8 x 25mm

4шт.

31

KHR2584

CLAMP

1шт.

32

157806A1

COLLAR

1шт.

33

KHR1828

BOLT,Spcl

M5 x 12mm

1шт.

34

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

35

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12mm

1шт.

36

KHR4114

PROTECTOR

1шт.

37

162R008VR

NUT

M8

1шт.

38

KHJ2298

BOLT,Spcl

M10 x 25mm

1шт.

39

167320A1

BOLT,Spcl, M8 x 20mm

M8 x 20mm

1шт.
