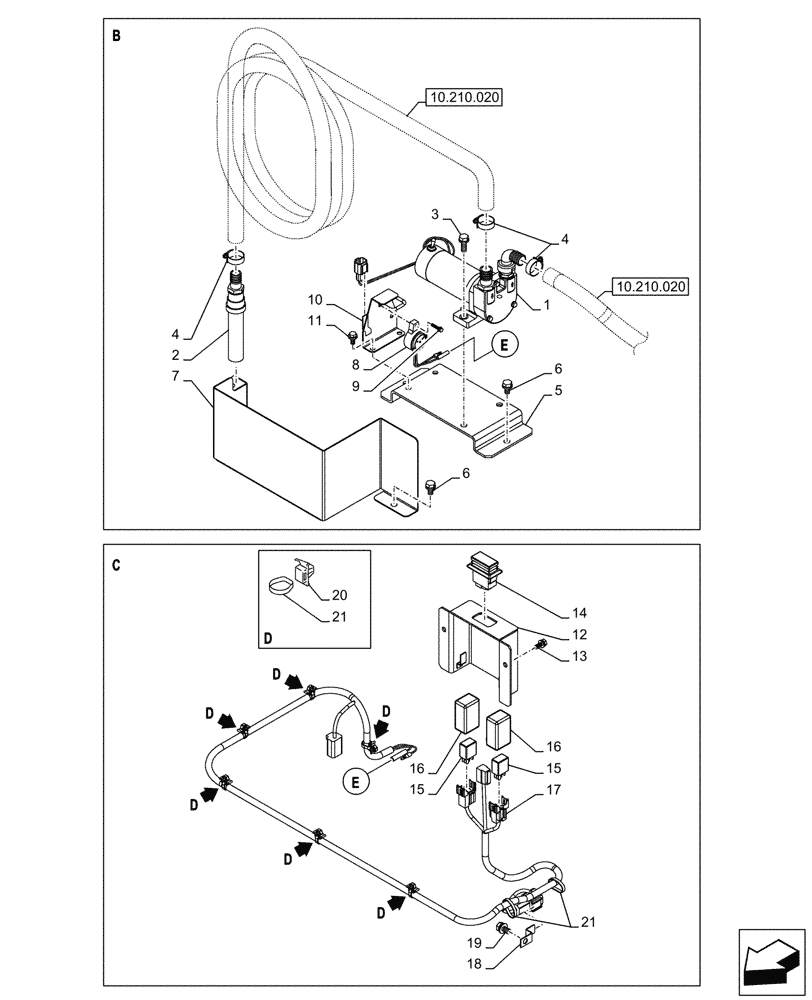

Запчасти Case CX290D LC SL (55.011.020) - VAR - 481257 - FUEL TRANSFER PUMP (55) - ELECTRICAL SYSTEMS

1

KHR12840

FUEL PUMP

50L/Min

1шт.

2

KHR12430

VALVE SECTION

50L/Min

1шт.

3

166347A1

BOLT,Sems, M10 x 30mm

2шт.

4

157917A1

COLLAR

2шт.

5

KHR12860

SUPPORT

1шт.

6

166351A1

BOLT,Sems, M10 x 20mm

5шт.

7

KHR39430

COVER

1шт.

8

KHR4024

ALARM

1шт.

9

KHR1832

SPECIAL BOLT

M5 x 25mm

1шт.

10

KHR39440

BRACKET

1шт.

11

166350A1

BOLT

M8 x 20mm

2шт.

12

KHR15080

COVER

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

14

KHR12900

SWITCH

1шт.

15

KHR3802

RELAY

24V

2шт.

16

159904A1

COVER

2шт.

17

KHR34760

WIRE HARNESS

1шт.

18

KHR37410

CLIP

15.8mm

1шт.

19

167518A1

BOLT

M8 x 16mm

1шт.

20

KHR10220

MOUNTING CLIP

8шт.

21

150496A1

MOUNTING CLIP

250mm

8шт.
