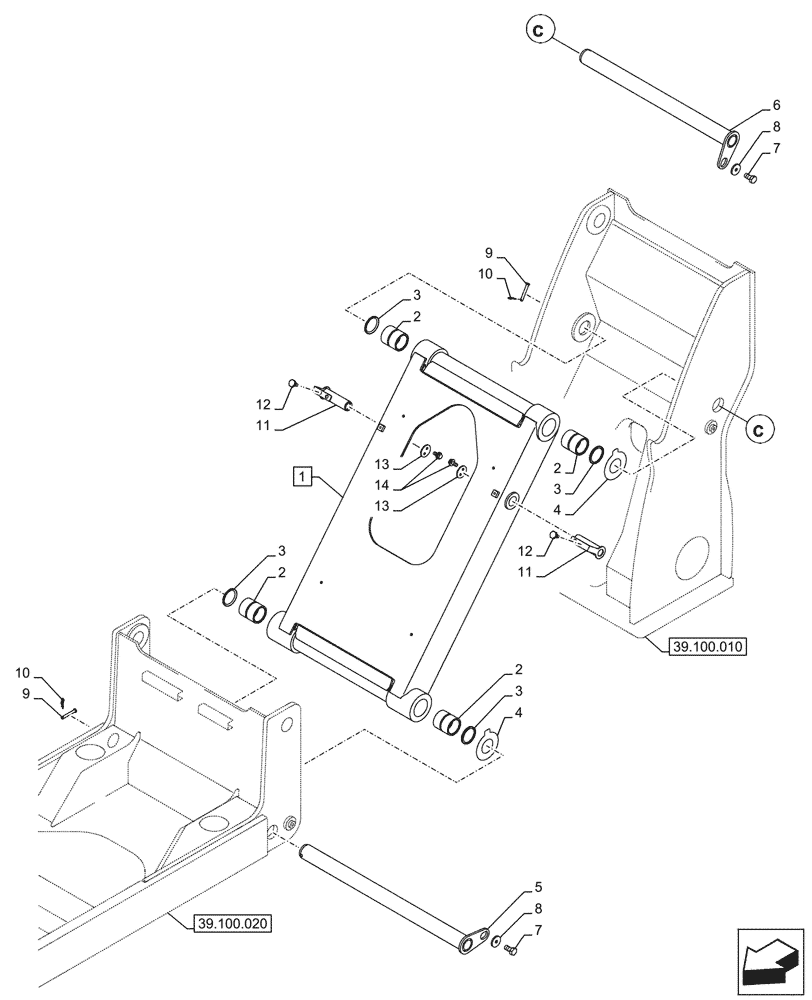

Запчасти Case CX290D LC SL (39.100.040) - ELEVATOR, FRAME, LINK & ROD (39) - FRAMES AND BALLASTING

1

KBB16740

LINK

ASSY, Incl 2

1шт.

2

161026A1

SELF LUB RING

4шт.

3

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

4шт.

4

KRB1687

WASHER

T=0.5 Thk

4шт.

5

KBB15260

PIN

2шт.

6

KBB15250

PIN

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

8

157141A1

WASHER

4шт.

9

706S010A0080

PIN

10mm x 80mm

4шт.

10

153181A1

COTTER PIN

4шт.

11

KBB15371

PIN

2шт.

12

KHB13520

BOLT

2шт.

13

KBB15380

PLATE

2шт.

14

166350A1

BOLT

M8 x 20mm

4шт.
