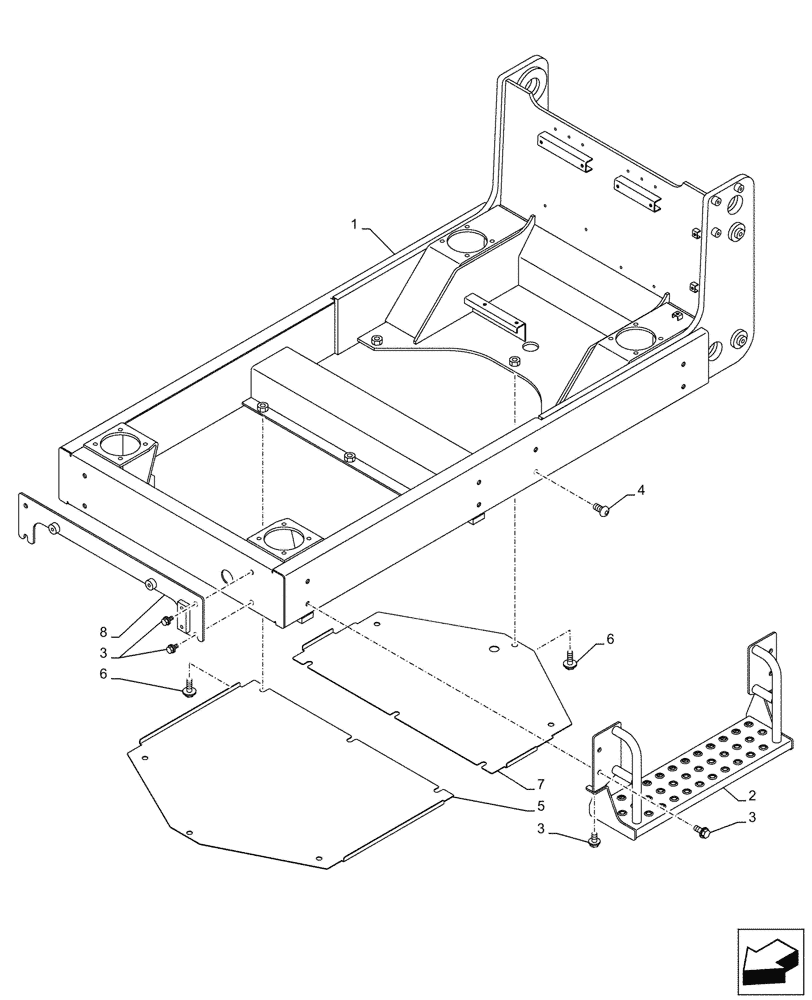

Запчасти Case CX290D LC SL (39.100.020) - ELEVATOR, FRAME (39) - FRAMES AND BALLASTING

1

KSB21380

FRAME

1шт.

2

KBB15440

STEP

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

1шт.

(Qty 6) ; (Qty 10) for PN KHP25150

1шт.

4

168013A1

BOLT

4шт.

5

KBB15330Y2

COVER

1шт.

6

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

12шт.

7

KBB15340Y2

COVER

1шт.

8

KHP25150

BRACKET

, Start Serial: D0565

1шт.
