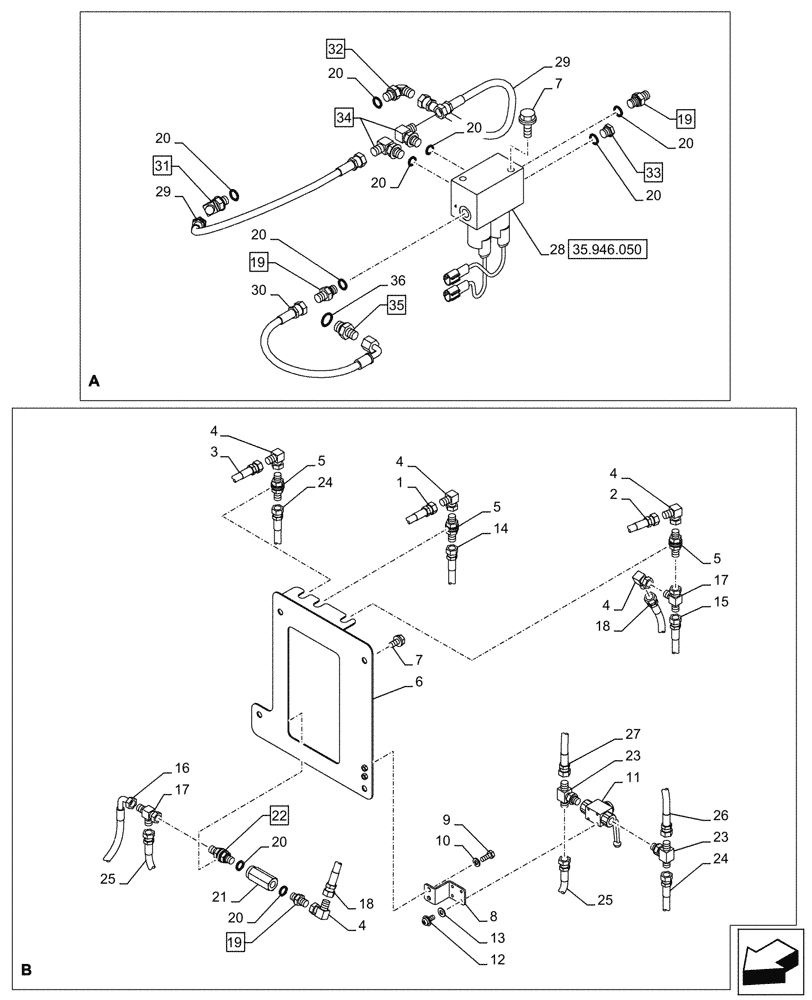

Запчасти Case CX290D LC SL (35.946.030) - ELEVATOR, FRAME, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

168691A1

HYDRAULIC HOSE,6.30 mm ID x 420.00 mm

From Cylinder to Main Control Valve

1шт.

2

KNJ0500

HYDRAULIC HOSE

From Cylinder to Main Control Valve

1шт.

3

AFV0041

HYDRAULIC HOSE

From Cylinder to Valve Stop

1шт.

4

163814A1

ELBOW

5шт.

5

159481A1

ADAPTER

G1/4"

3шт.

6

KBJ19390

BRACKET

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

6шт.

8

KBJ27170

BRACKET

1шт.

9

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

KBJ21320

VALVE

, Serial Range: -C0566

1шт.

11

KBJ21321

, Start Serial: D0566

VALVE

1шт.

12

157540A1

SCREW

4шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

14

KHJ2496

HYDRAULIC HOSE

L=2650mm, From Cylinder to Main Control Valve

1шт.

15

KHJ37660

HYDRAULIC HOSE

L=2550mm, From Cylinder to Main Control Valve

1шт.

16

KHJ1191

HYDRAULIC HOSE

L=2100mm, From Cylinder to Oil Tank

1шт.

17

KHJ2130

TEE

3-G1/4"

2шт.

18

KBJ18180

HYDRAULIC HOSE

6mm ID x 250mm, From Cylinder to Valve Stop

1шт.

19

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

3шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

21

KBJ17950

VALVE

1шт.

22

158183A1

ELEC CONNECTOR,Male

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

1шт.

23

167321A1

TEE

2-G1/4" x G1/4"

2шт.

24

MHJ0094

HOSE ASSY.,6.30 mm ID x 650.00 mm

L=650mm, From Cylinder to Valve Stop

1шт.

25

167865A1

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

L=450mm, From Cylinder to Valve Stop

1шт.

26

KHJ29620

HYDRAULIC HOSE

6mm ID x 4900mm, From Stop Valve to Stop Valve

1шт.

27

KBJ26040

HYDRAULIC HOSE

6mm ID x 5000mm, From Stop Valve to Stop Valve

1шт.

28

KHJ14000

VALVE SECTION

1шт.

29

KHJ2240

HOSE

6mm ID x 450mm, From Solenoid Valve to Main Control Valve

2шт.

30

KHJ2084

HOSE

6mm ID x 350mm, From Solenoid Valve to Main Control Valve

1шт.

31

150933A1

ELBOW

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

1шт.

32

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

1шт.

33

159002A1

PLUG

ASSY, G1/4", Incl 20 (Qty 1)

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, G1/4" x G1/4", Incl 20 (Qty 1)

2шт.

35

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 36

1шт.

36

150031A1

O-RING,10mm ID x 24mm OD

1шт.
