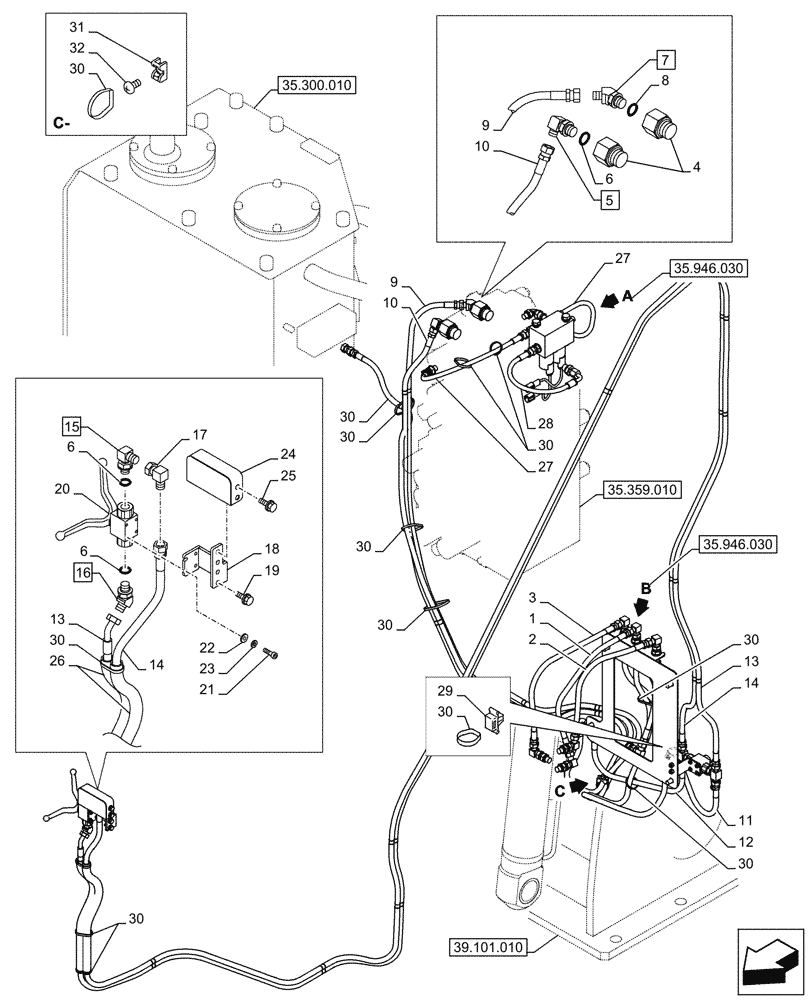

Запчасти Case CX290D LC SL (35.946.010) - ELEVATOR, FRAME, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

168691A1

HYDRAULIC HOSE,6.30 mm ID x 420.00 mm

From Cylinder to Main Control Valve

1шт.

2

KNJ0500

HYDRAULIC HOSE

From Cylinder to Main Control Valve

1шт.

3

AFV0041

HYDRAULIC HOSE

From Cylinder to Valve Stop

1шт.

4

168733A1

ADAPTER

G3/4" x G3/8"

2шт.

5

156554A1

ELBOW

ASSY, G3/8" x G1/4", Incl 6 (Qty 1)

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

7

KHJ1445

ELBOW

ASSY, G3/8" x G1/4", Incl 8

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

1шт.

9

KHJ2496

HYDRAULIC HOSE

L=2650mm, From Cylinder to Main Control Valve

1шт.

10

KHJ37660

HYDRAULIC HOSE

L=2550mm, From Cylinder to Main Control Valve

1шт.

11

MHJ0094

HOSE ASSY.,6.30 mm ID x 650.00 mm

L=650mm, From Cylinder to Valve Stop

1шт.

12

167865A1

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

L=450mm, From Cylinder to Valve Stop

1шт.

13

KHJ29620

HYDRAULIC HOSE

6mm ID x 4900mm, From Stop Valve to Stop Valve

1шт.

14

KBJ26040

HYDRAULIC HOSE

6mm ID x 5000mm, From Stop Valve to Stop Valve

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

16

150933A1

ELBOW

ASSY, G1/4" x G1/4", Incl 6 (Qty 1)

1шт.

17

163814A1

ELBOW

1шт.

18

KSJ23250

BRACKET

1шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

20

KBJ21320

VALVE

, Serial Range: -C0566

1шт.

20

KBJ21321

, Start Serial: D0566

VALVE

1шт.

21

KRJ1732

BOLT

4шт.

22

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

23

892-11004

LOCK WASHER,M4

4шт.

24

KSJ23260

COVER

1шт.

25

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

26

KRH16440

TUBE

15mm ID x 350mm

2шт.

27

KHJ2240

HOSE

6mm ID x 450mm, From Solenoid Valve to Main Control Valve

2шт.

28

KHJ2084

HOSE

6mm ID x 350mm, From Solenoid Valve to Main Control Valve

1шт.

29

KHR10220

MOUNTING CLIP

1шт.

30

150496A1

MOUNTING CLIP

250mm

13шт.

31

150860A1

COLLAR

1шт.

32

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.
