(35.738.050) - VAR - 461033 - BUCKET CYLINDER, LINES

Запчасти Case CX290D LC SL (35.738.050) - VAR - 461033 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

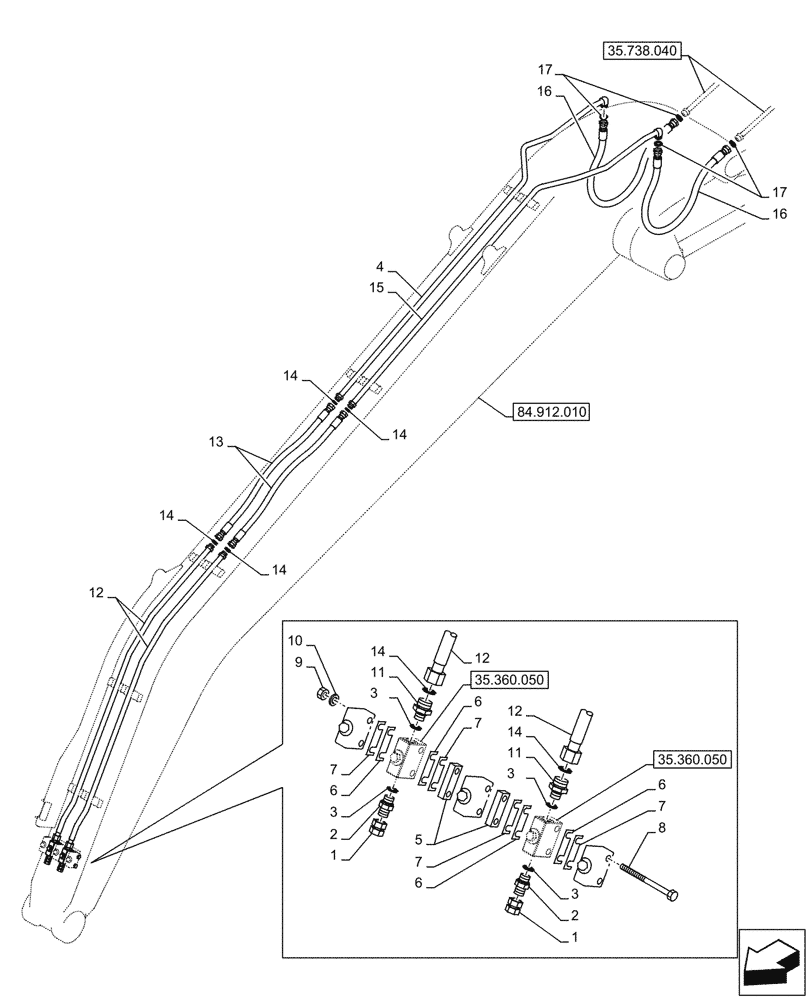

Схема запчастей Case CX290D LC SL - (35.738.050) - VAR - 461033 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.360.050
3
15
3
6
12
12
8
3
9
14
3
1
2
14
16
4
17
13
2
14
12
14
14
10
5
17
7
14
6
1
7
7
6
6
16
11
7
11
35.738.040
84.912.010
35.360.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158841A1

PLUG

G1/2"

2шт.

2

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 3 G1/2" x G1/2"

2шт.

3

150539A1

O-RING

4шт.

4

KBV20930

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

5

KRV29890

SPACER

2шт.

6

KRV33290

SHIM

T=0.5 Thk

4шт.

7

KRV33300

SHIM

T=1.0 Thk

4шт.

8

ADS4057

BOLT,Hex

M12 x 260mm

2шт.

9

162R012VR

NUT

M12

2шт.

10

150811A1

WASHER

2шт.

11

KHJ1765

ADAPTER

ASSY, Incl 3

2шт.

12

KBV33740

PIPE

, From Main Control Valve to Stop Valve

2шт.

13

KRV12781

HYDRAULIC HOSE

19mm ID x 1000mm, , From Main Control Valve to Stop Valve

2шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

15

KBV20920

HYD TUBE

, From Main Control Valve to Stop Valve

1шт.

16

KBV20240

HYDRAULIC HOSE

L=1300mm,, From Main Control Valve to Stop Valve

2шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.
