(35.738.040) - VAR - 461033 - BUCKET CYLINDER, LINES

Запчасти Case CX290D LC SL (35.738.040) - VAR - 461033 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

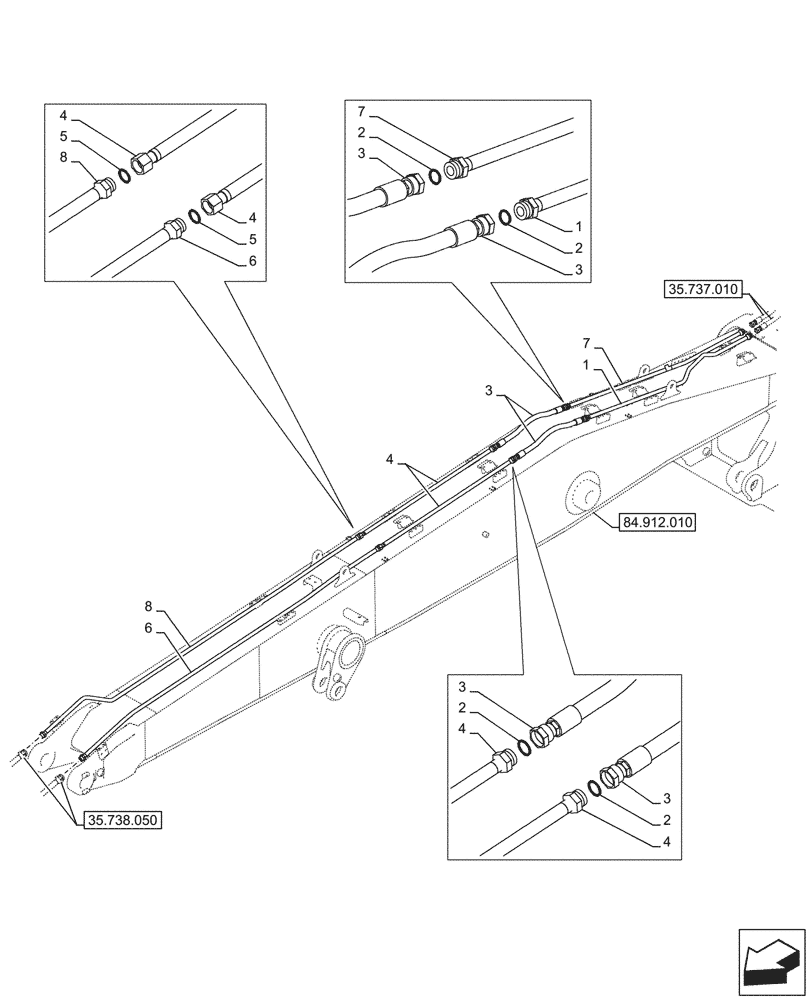

Схема запчастей Case CX290D LC SL - (35.738.040) - VAR - 461033 - BUCKET CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
84.912.010
4
4
5
4
2
6
1
3
8
3
7
7
3
4
8
5
4
2
6
1
3
2
2
3
35.737.010
35.738.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV34970

PIPE

From Main Control Valve to Stop Valve

1шт.

2

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

3

KRV34200

HYDRAULIC HOSE

22mm ID x 750mm, From Main Control Valve to Stop Valve

2шт.

4

KBV20910

HYD TUBE

From Main Control Valve to Stop Valve

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KBV20200Y2

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

7

KBV43640

PIPE

From Main Control Valve to Stop Valve

1шт.

8

KBV20210Y2

HYD TUBE

From Main Control Valve to Stop Valve

1шт.
