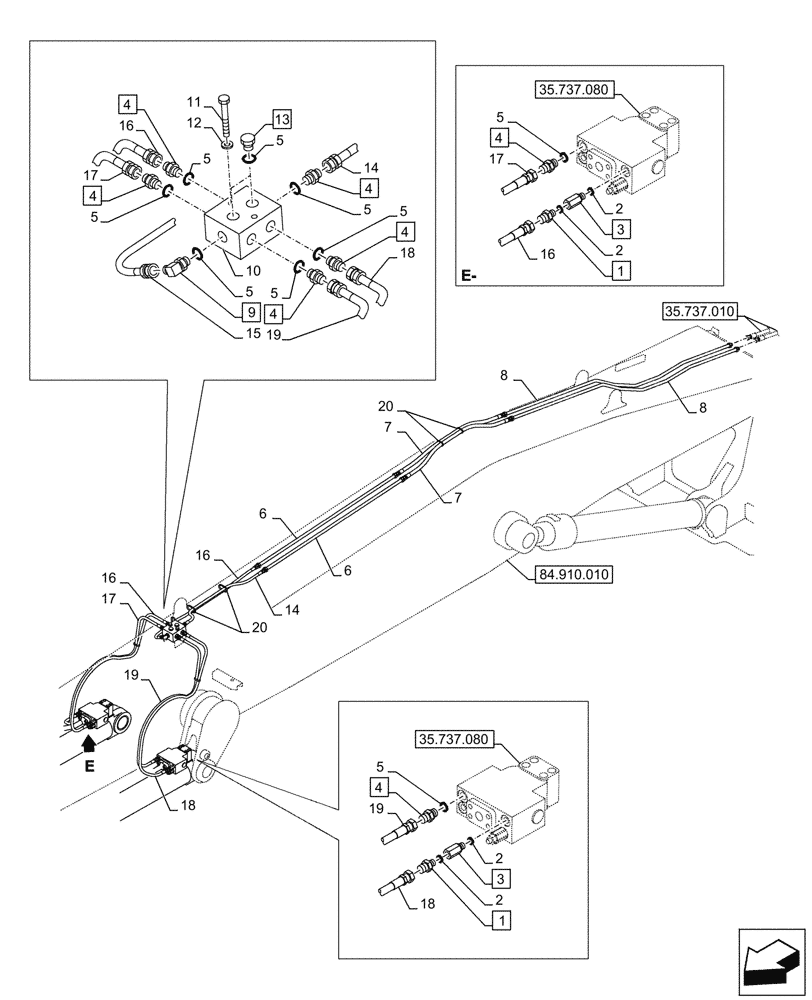

Запчасти Case CX290D LC SL (35.737.070) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

152747A1

ADAPTER

ASSY, G1/4" x G3/8", Incl 2 (Qty 1)

2шт.

2

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

3

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 2 (Qty 1)

2шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

7шт.

5

150031A1

O-RING,10mm ID x 24mm OD

7шт.

6

KBV20870

HYD TUBE

2шт.

7

KNV0400

HYDRAULIC HOSE

2шт.

8

KBV24860

PIPE

2шт.

9

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, G3/8" x G3/8", Incl 5 (Qty 1)

1шт.

10

KRJ4384

MANIFOLD

1шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

12

150409A1

WASHER

M12

2шт.

13

153105A1

PLUG

ASSY, G3/8", Incl 5 (Qty 1)

2шт.

14

167872A1

HYDRAULIC HOSE,800.00 mm

9mm ID x 800mm, From Main Control Valve to Safety Valve

1шт.

15

KHJ1166

HOSE ASSY.

9mm ID x 950mm, From Main Control Valve to Safety Valve

1шт.

16

166164A1

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

L=1350mm, From Main Control Valve to Safety Valve

1шт.

17

165782A1

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

From Main Control Valve to Safety Valve

1шт.

18

KHJ1566

HYDRAULIC HOSE

9mm ID x 1450mm, From Main Control Valve to Safety Valve

1шт.

19

KHJ2889

HYDRAULIC HOSE

9mm ID x 1300mm, From Main Control Valve to Safety Valve

1шт.

20

150071A1

MOUNTING CLIP

380mm

1шт.
