(35.737.060) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX290D LC SL (35.737.060) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

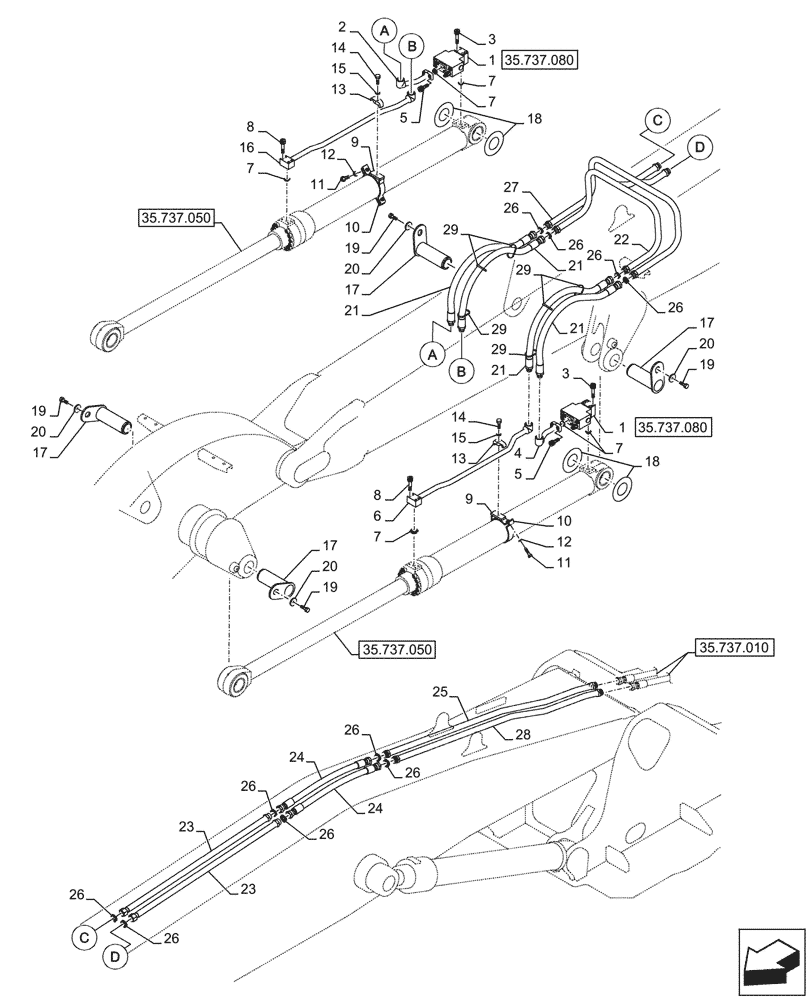

Схема запчастей Case CX290D LC SL - (35.737.060) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.737.080
29
15
21
13
6
17
19
7
5
29
14
5
24
3
16
9
18
9
11
26
14
7
12
21
26
20
29
26
20
26
17
15
7
2
7
19
21
1
19
25
17
22
8
19
26
3
10
26
20
27
26
10
21
12
23
29
13
1
24
4
23
26
26
11
26
8
28
20
18
7
17
35.737.010
35.737.050
35.737.050
35.737.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNV26480

VALVE

ASSY

2шт.

2

KBV20800

HYD TUBE

1шт.

3

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

8шт.

4

KBV20790

HYD TUBE

1шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

6

KBV20070Y2

HYD TUBE

1шт.

7

161097A1

O-RING

6шт.

8

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

8шт.

9

KBV20091

CLAMP

2шт.

10

MFV5008

CLAMP

2шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

151486A1

CLAMP BRACKET

2шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

15

183-112VR

SPRING WASHER

2шт.

16

KBV20080

HYD TUBE

1шт.

17

KBV20121

PIN

4шт.

18

158691A1

WASHER

4шт.

19

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

20

157141A1

WASHER

4шт.

21

KBV20131

HYDRAULIC HOSE

25mm ID x 1000mm, From Main Control Valve to Arm Cylinder

4шт.

22

KBV33720

PIPE

From Main Control Valve to Arm Cylinder

1шт.

23

KBV20830

HYD TUBE

From Main Control Valve to Arm Cylinder

2шт.

24

KBV17201

HYDRAULIC HOSE

25mm ID x 750mm, From Main Control Valve to Arm Cylinder

2шт.

25

KBV33680

PIPE

From Main Control Valve to Arm Cylinder

1шт.

26

KHJ1361

O-RING,0.07" Thk x 0.926" ID

12шт.

27

KBV33710

PIPE

1шт.

28

KBV33670

PIPE

1шт.

29

150071A1

MOUNTING CLIP

380mm

1шт.
