(35.737.010) - ARM CYLINDER, LINES

Запчасти Case CX290D LC SL (35.737.010) - ARM CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

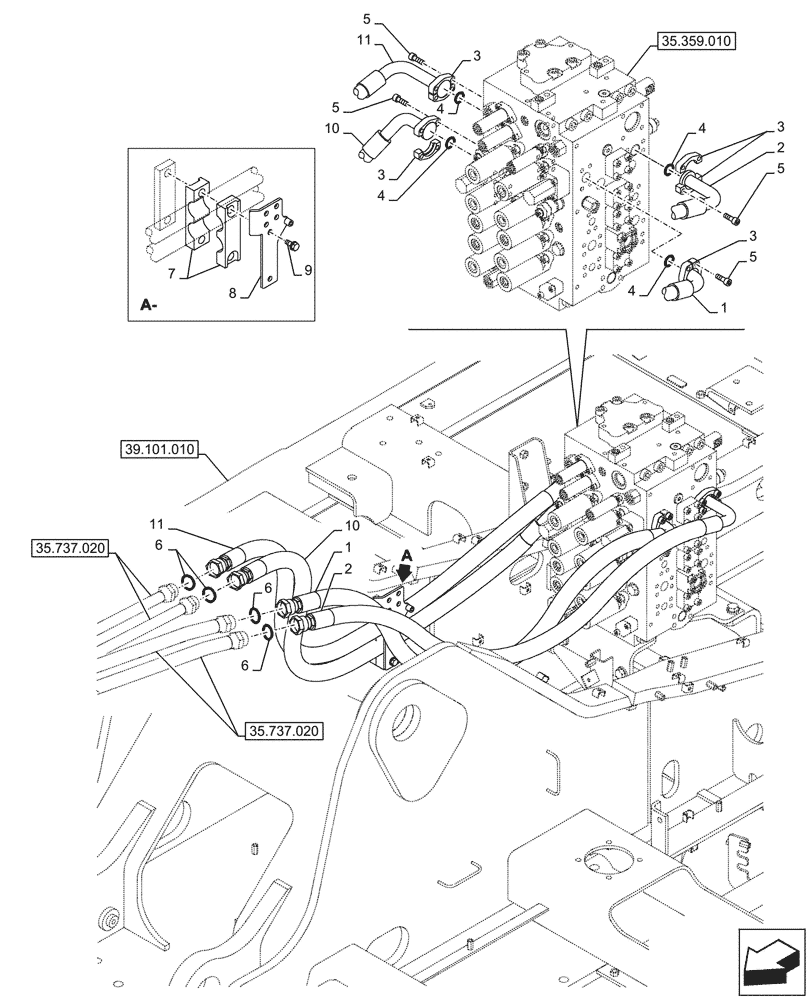

Схема запчастей Case CX290D LC SL - (35.737.010) - ARM CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
10
6
11
1
9
3
5
1
4
11
3
6
6
4
2
3
2
8
4
7
5
5
5
10
3
4
35.737.020
35.737.020
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ25510

HYDRAULIC HOSE

25mm ID x 1460mm, from Control Valve to Arm Cylinder

1шт.

2

KRJ33230

HYDRAULIC HOSE

25mm ID x 1500mm, from Control Valve to Arm Cylinder

1шт.

3

153459A1

FLANGE

8шт.

4

162246A1

O-RING

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

7

KBJ14410

HOSE CLAMP

42mm ID x 2mm

2шт.

8

KBJ24300

PLATE

1шт.

9

166052A1

BOLT

M10 x 25mm

2шт.

10

KBJ14381

HYDRAULIC HOSE

25mm ID x 1800mm, from Control Valve to Arm Cylinder

1шт.

11

KBJ22520

HYDRAULIC HOSE

25mm ID x 1780mm, from Control Valve to Arm Cylinder

1шт.
