Запчасти Case CX290D LC SL (35.736.020) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

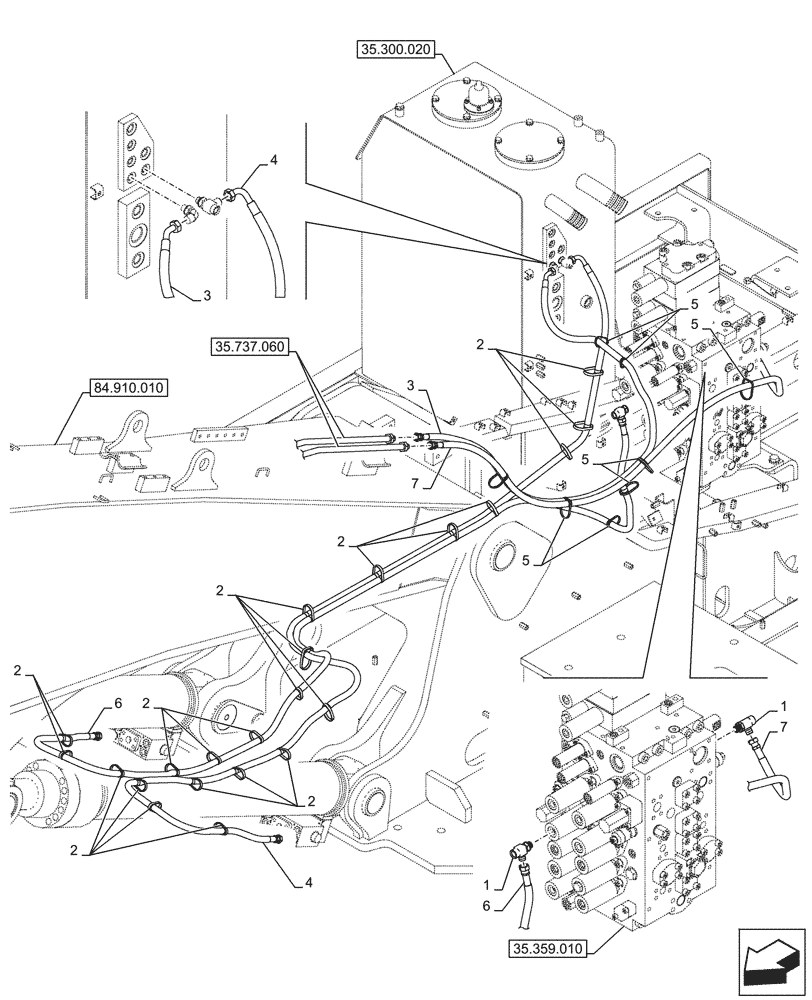

Схема запчастей Case CX290D LC SL - (35.736.020) - VAR - 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
35.359.010
2
2
2
5
4
2
2
7
3
1
6
3
5
2
2
6
4
5
1
5
7
35.737.060
35.300.020
84.910.010

Артикул

Название

Примечание

Количество

1

KHJ31880

TEE

3-G3/8"

2шт.

2

150071A1

MOUNTING CLIP

380mm

22шт.

3

KHJ34710

HYDRAULIC HOSE

9mm ID x 2000mm, From Oil Tank to Arm Safety Valve

1шт.

4

KHJ34990

HYDRAULIC HOSE

9mm ID x 4000mm, From Oil Tank to Boom Safety Valve

1шт.

5

150496A1

MOUNTING CLIP

250mm

9шт.

6

KHJ23750

HYDRAULIC HOSE

9mm ID x 3900mm, From Main Control Valve to Boom Safety Valve

1шт.

7

KHJ23610

HYDRAULIC HOSE

9mm ID x 1850mm, From Main Control Valve to Arm Safety Valve

1шт.

Выбрано товаров: 7
