(35.360.040) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC SL (35.360.040) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

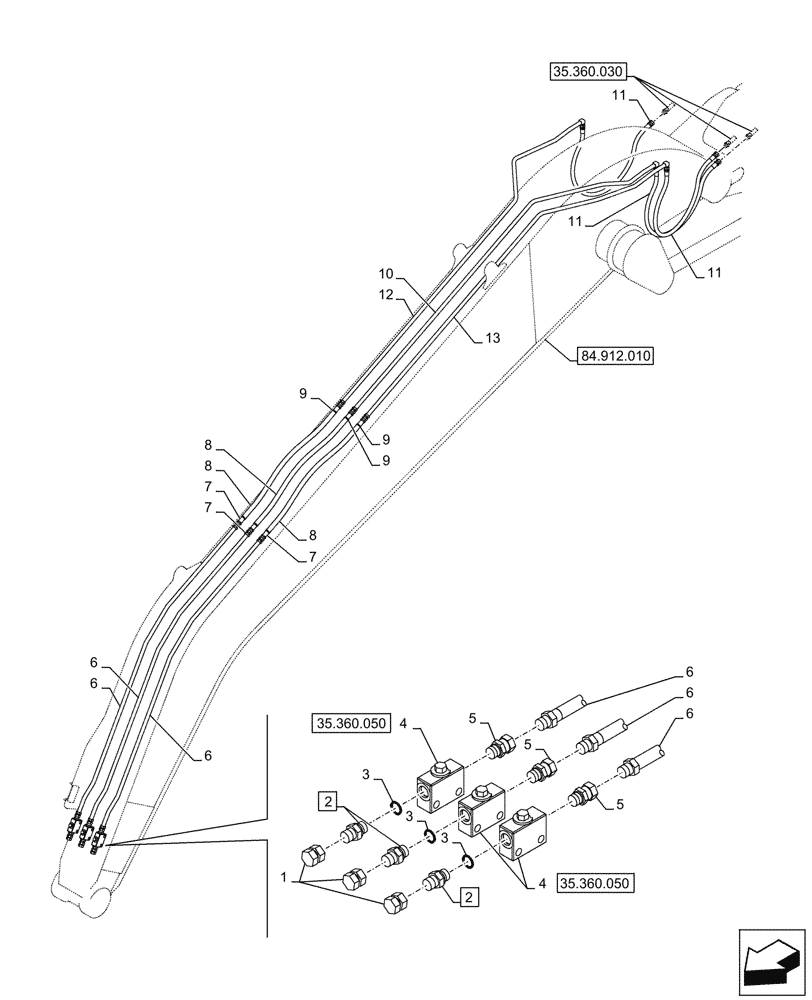

Схема запчастей Case CX290D LC SL - (35.360.040) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.050
5
6
6
9
12
6
5
11
7
6
7
7
4
4
2
3
5
2
6
11
1
6
9
8
13
11
3
3
9
10
8
8
35.360.030
84.912.010
35.360.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158841A1

PLUG

G1/2"

3шт.

2

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", 3

3шт.

3

150539A1

O-RING

3шт.

4

KHV10440

VALVE

ASSY

3шт.

5

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

6

KBV33760

PIPE

From Main Control Valve to Stop Valve

3шт.

7

KAJ4647

HYDRAULIC HOSE,12.70 mm ID x 1000.00 mm

From Main Control Valve to Stop Valve

3шт.

8

150440A1

PLASTIC-RUBBER TUBE

22mm ID x 1000mm

3шт.

9

150067A1

MOUNTING CLIP

150mm

6шт.

10

KBV21090

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

11

KEV0299

HYDRAULIC HOSE

L=1260mm, From Main Control Valve to Stop Valve

3шт.

12

KBV21100

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

13

KBV21110

HYD TUBE

From Main Control Valve to Stop Valve

1шт.
