(35.360.030) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX290D LC SL (35.360.030) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

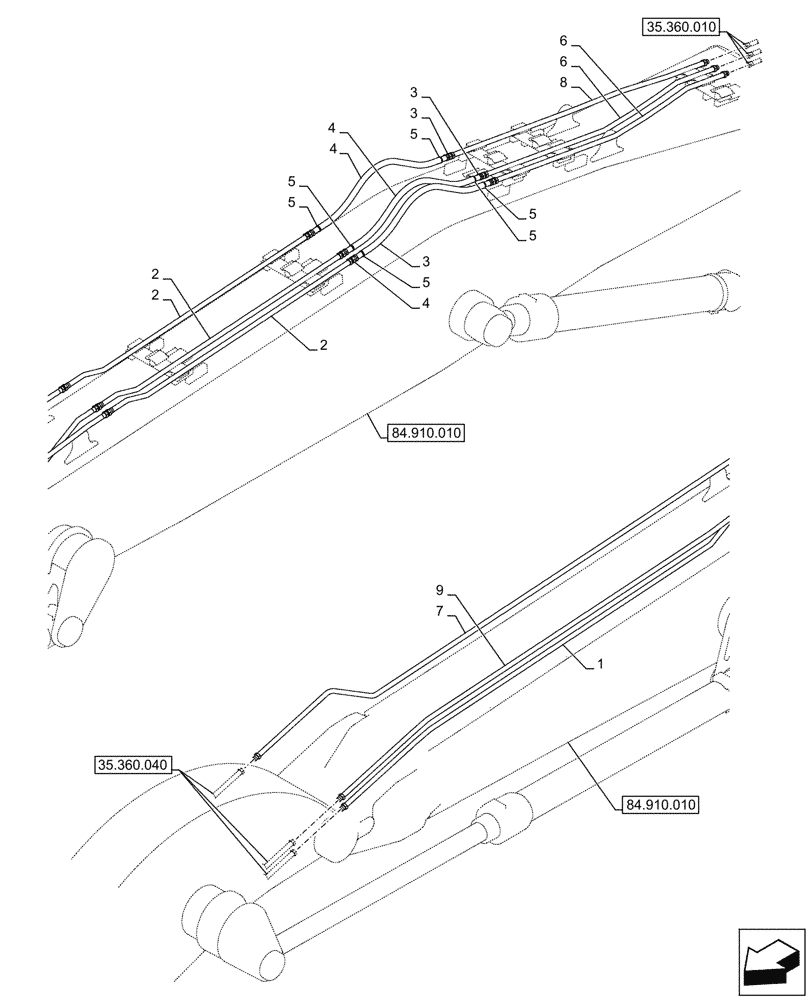

Схема запчастей Case CX290D LC SL - (35.360.030) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.010
7
5
5
9
3
2
2
5
1
8
3
6
5
4
2
3
6
5
4
5
4
35.360.040
84.910.010
84.910.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV20450Y2

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

2

KBV21080

HYD TUBE

From Main Control Valve to Stop Valve

3шт.

3

KAJ4647

HYDRAULIC HOSE,12.70 mm ID x 1000.00 mm

12mm ID x 1000mm, From Main Control Valve to Stop Valve

3шт.

4

150440A1

PLASTIC-RUBBER TUBE

22mm ID x 1000mm, From Main Control Valve to Stop Valve

3шт.

5

150067A1

MOUNTING CLIP

150mm, From Main Control Valve to Stop Valve

6шт.

6

KBV39290

PIPE

From Main Control Valve to Stop Valve

3шт.

7

KBV20460Y2

HYD TUBE

From Main Control Valve to Stop Valve

1шт.

8

KBV39280

PIPE

From Main Control Valve to Stop Valve

1шт.

9

KBV20470Y2

HYD TUBE

From Main Control Valve to Stop Valve

1шт.
