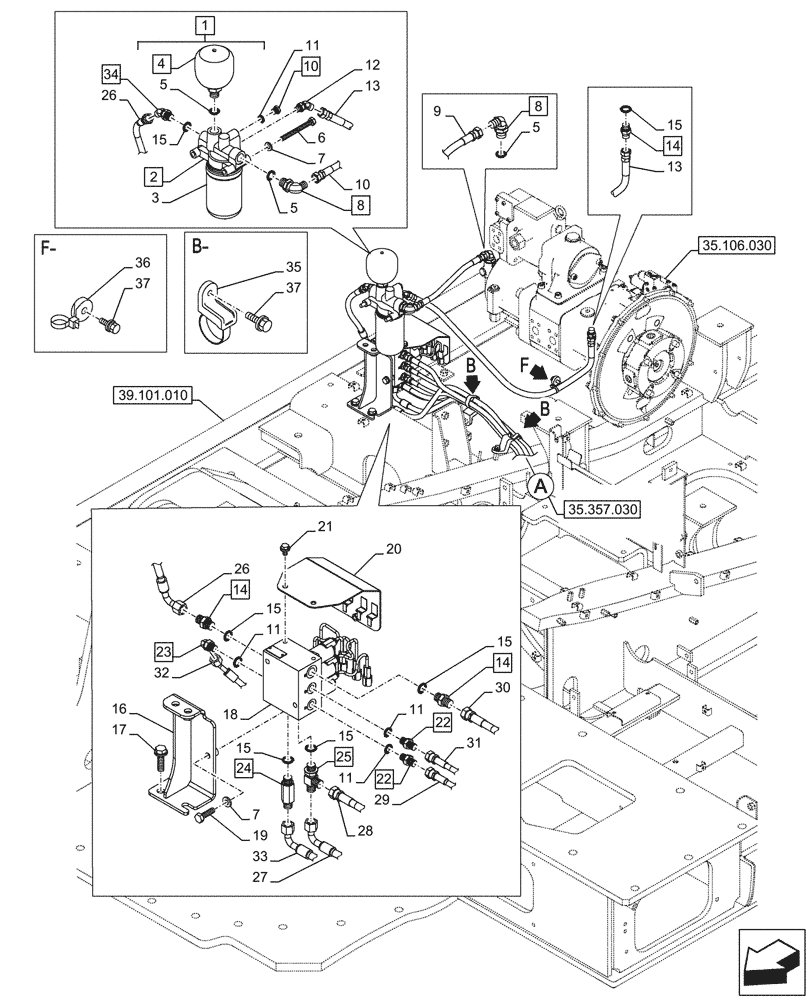

Запчасти Case CX290D LC SL (35.357.010) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
KHJ17710
FILTER ASSY
ASSY, Incl 2 - 5
1шт.
2
KHJ17720
FILTER HEAD
ASSY, Incl 3
1шт.
4
KHJ2359
ACCUMULATOR
ASSY, Incl 5 (Qty 1)
1шт.
5
150539A1
O-RING
3шт.
6
814-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8
2шт.
7
150409A1
WASHER
M12
4шт.
8
KHJ29500
ELBOW
ASSY, Incl 5 (Qty 1)
1шт.
9
KHJ2460
HYDRAULIC HOSE
370mm
1шт.
10
159002A1
PLUG
ASSY, G1/4", Incl 11
1шт.
11
150960A1
O-RING,10.8mm ID x 2.4mm Width
4шт.
12
KHJ28750
ELBOW
G1/4" x G3/8"
1шт.
13
KHJ37330
HOSE
9mm ID x 900mm
1шт.
14
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, G3/8" x G3/8", Incl 15 (Qty 1)
3шт.
15
150031A1
O-RING,10mm ID x 24mm OD
6шт.
16
KBJ22640
BRACKET
1шт.
17
105R012Y045R
BOLT
M12 x 45mm
2шт.
18
KHJ28510
VALVE
1шт.
19
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
2шт.
20
KHJ16220
COVER
1шт.
21
166345A1
BOLT
M8 x 16mm
2шт.
22
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ASSY, G1/4" x G1/4", Incl 11 (Qty 1)
2шт.
23
KHJ28580
ELBOW
ASSY, G1/4" x G1/4", Incl 11 (Qty 1)
1шт.
24
KAJ2351
FITTING
ASSY, G3/8" x G3/8", Incl 15 (Qty 1)
1шт.
25
164107A1
TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT
ASSY, G3/8" x G3/8" x G3/8", Incl 15 (Qty 1)
1шт.
26
KHJ37340
HOSE
9mm ID x 340mm
1шт.
27
KHJ26810
HOSE ASSY.
9mm ID x 2550mm, From Solenoid Valve to Adapter
1шт.
28
KHJ24360
HYDRAULIC HOSE
9mm ID x 1800mm, From Solenoid Valve to Reducing Valve
1шт.
29
KHJ2071
HOSE
6mm ID x 2450mm, From Solenoid Valve to Center Joint
1шт.
30
KHJ2207
HOSE
9mm ID x 2600mm, From Solenoid Valve to Swing Motor
1шт.
31
KHJ2334
HOSE
6mm ID x 1480mm, From Solneoid Valve to Control Valve
1шт.
32
KHJ32150
HOSE
6mm ID x 2000mm, From Solneoid Valve to Control Valve
1шт.
33
KHJ14260
HOSE
9mm ID x 1900mm, From Solenoid Valve to Sump Tank
1шт.
34
KHJ28640
ELBOW
ASSY, G3/8" x G3/8", Incl 15 (Qty 1)
1шт.
35
KHR2581
CLAMP
M8
4шт.
36
KHR2584
CLAMP
1шт.
37
KHJ1215
BOLT,Spcl
M8 x 25mm
3шт.
