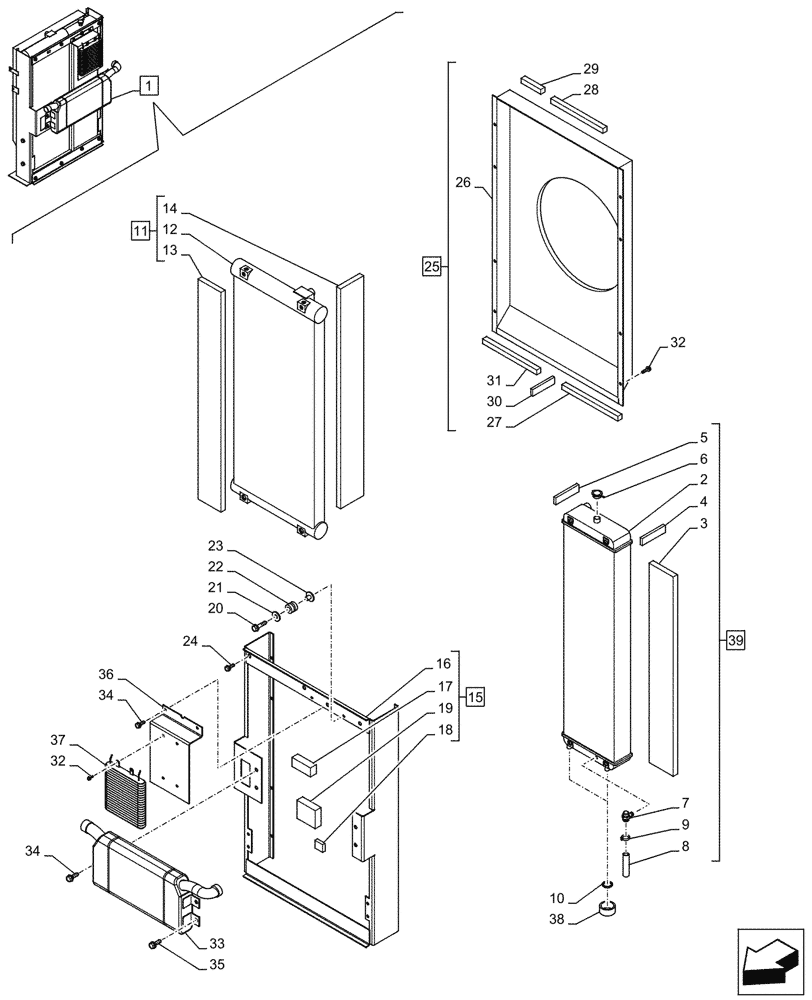

Запчасти Case CX290D LC MH (10.400.020) - RADIATOR, COMPONENTS (10) - ENGINE

1

KBH16390

RADIATOR

ASSY, Incl 2 - 39

1шт.

2

NSS

NOT SOLD SEPARAT

Radiator Core, Incl in 39

1шт.

3

LE019280

PACKING

20mm x 20mm x 950mm

1шт.

4

LE015640

SEAL PROTECTION

35mm x 18mm x 108mm

2шт.

5

LE019290

PACKING

25mm x 30mm x 112mm

2шт.

6

LR023950

CAP

1шт.

7

156602A1

COCK

1шт.

8

LK005540

PLUG

1шт.

9

LA00804

CLIP

1шт.

10

LG005620

SILENTBLOC

2шт.

11

LN002870

OIL COOLER

ASSY, Incl 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Cooler Oil, Incl in 11

1шт.

13

LE019300

PACKING

30mm x 30mm x 1000mm

1шт.

14

LE019310

PACKING

30mm x 45mm x 1010mm

1шт.

15

LT002860

FRAME

ASSY, Incl 16 - 19

1шт.

16

LT002870

FRAME

1шт.

17

LE019320

PACKING

20mm x 30mm x 535mm

2шт.

18

LE019330

PACKING

20mm x 25mm x 410mm

2шт.

19

LE019340

PACKING

45mm x 30mm x 50mm

1шт.

20

LA011800

BOLT,Hex

M10 x 1.5mm

4шт.

21

LA011260

WASHER

4шт.

22

LG005910

SEAL PROTECTION

4шт.

23

LH004680

COLLAR

4шт.

24

LA012850

SCREW

M12 x 1.75mm

4шт.

25

LW007530

ASSY, Incl 26 - 31

SHROUD

1шт.

26

LW007520

SHROUD

1шт.

27

LE019350

PACKING

25mm x 50mm x 490mm

2шт.

28

LE019360

PACKING

15mm x 20mm x 310mm

1шт.

29

LE019370

PACKING

15mm x 10mm x 100mm

1шт.

30

LE019380

PACKING

20mm x 20mm x 40mm

1шт.

31

LE019390

GASKET

10mm x 10mm x 400mm

1шт.

32

LA011830

BOLT,Spcl, Hex

M8 x 1.25mm

13шт.

33

LN003050

INTERCOOLER

1шт.

34

LA011840

BOLT

M10 x 1.5mm

4шт.

35

LA011850

BOLT,Hex

M10 x 1.5mm

2шт.

36

LS005350

BRACKET

1шт.

37

LN002330

FUEL COOLER

Fuel

1шт.

38

LG005900

SILENTBLOC

2шт.

39

LN002850

RADIATOR

ASSY, Incl 2 - 9

1шт.
