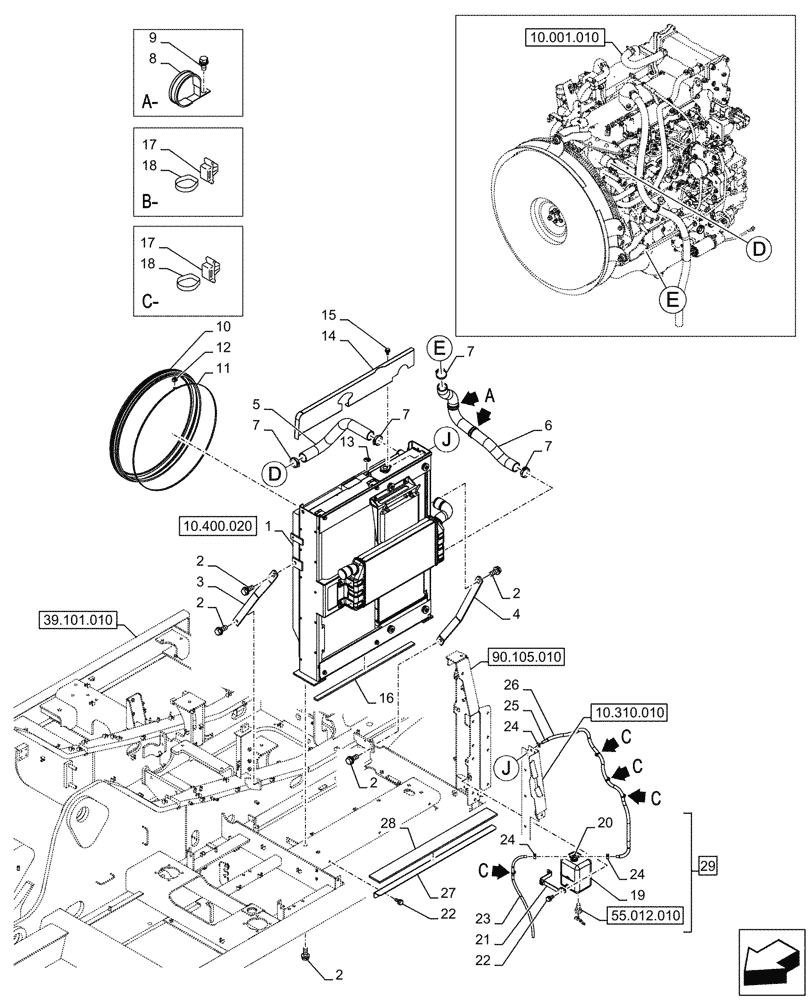

Запчасти Case CX290D LC MH (10.400.010) - RADIATOR (10) - ENGINE

1

KBH16390

RADIATOR

ASSY

1шт.

2

166373A1

BOLT,Sems, M16 x 40mm

8шт.

3

KBH12990

STAY

1шт.

4

KBH13000

STAY

1шт.

5

KBH11300

RADIATOR HOSE

From Radiator to Engine

1шт.

6

KBH12420

RADIATOR HOSE

From Radiator to Engine

1шт.

7

165793A1

COLLAR

4шт.

8

KRH10460

HOSE CLIP

2шт.

9

167320A1

BOLT,Spcl, M8 x 20mm

2шт.

10

KRH12850

RUBBER SEAL

1шт.

11

KHH12390

MOUNTING CLIP

2500mm

1шт.

12

KHH12410

COLLAR CLAMP

1шт.

13

KHP27380

DECAL

1шт.

14

KBH13032

BRACKET

1шт.

15

166350A1

BOLT

M8 x 20mm

4шт.

16

KRH15160

SEAL PROTECTION

1шт.

17

KHR10220

MOUNTING CLIP

5шт.

18

150496A1

MOUNTING CLIP

250mm

5шт.

19

150026A1

TANK

1шт.

20

KHH10860

PLASTIC PLUG

1шт.

21

KBH13121

HOLDER

1шт.

22

166052A1

BOLT

M10 x 25mm

5шт.

23

KHH0398

HOSE,7mm ID x 650mm L

1шт.

24

165951A1

CLAMP

3шт.

25

KHH0389

HOSE

1300mm, From Coolant Expansion Reservoir to Radiator

1шт.

26

KBR0665

PLASTIC-RUBBER TUBE

1200mm

1шт.

27

KBH13270

BRACKET

1шт.

28

KBH13280

SEAL

1шт.

29

KHH10840

RESERVOIR, COOLANT E

ASSY, Incl 19, 20

1шт.

See also Figure 55.012.010

1шт.
