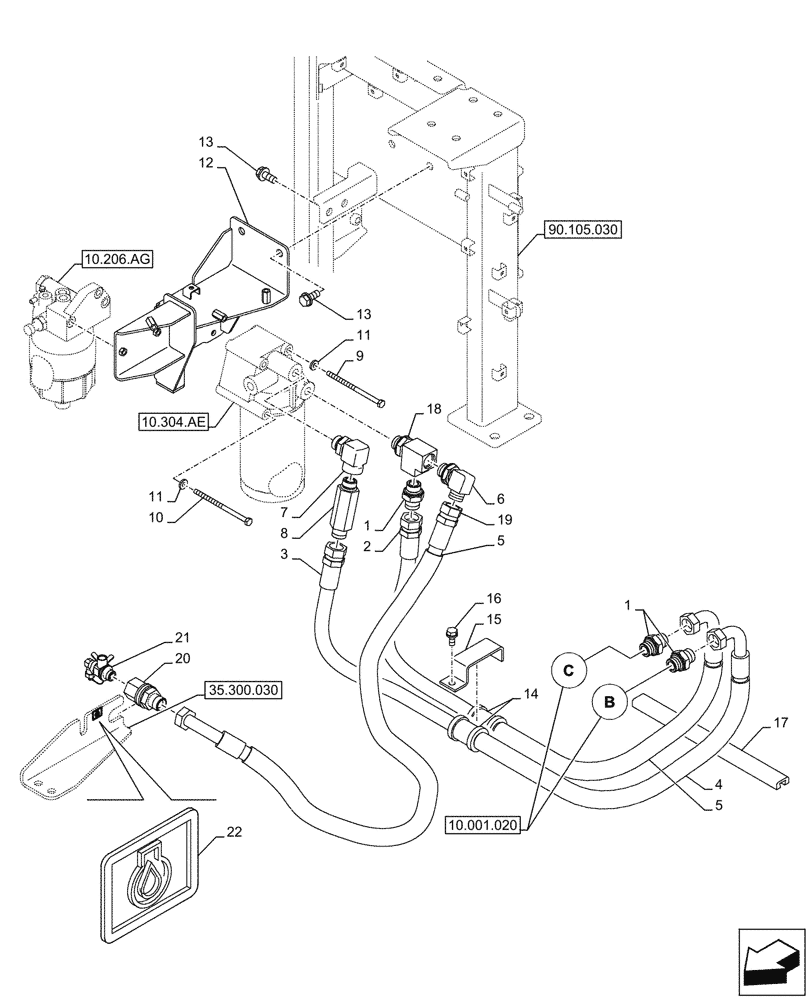

Запчасти Case CX290D LC MH (10.304.020) - VAR - 488034 - ENGINE OIL FILTER, DRAIN LINE (10) - ENGINE

1

KHH14620

ADAPTER

G3/4" x G3/4"

3шт.

2

KRH10330

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

1350mm, From Engine to Oil Filter

1шт.

3

KBH10590

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

1450mm, From Engine to Oil Filter

1шт.

4

KHR21080

PLASTIC-RUBBER TUBE

28mm ID

1шт.

5

KMR12260

PROTECTIVE SLEEVE

28mm ID x 580mm

2шт.

6

KHH14660

ELBOW

G3/4" x G3/4"

1шт.

7

KHH17590

ELBOW UNION

G3/4" x G3/4"

1шт.

8

KHH17600

STUD

1шт.

9

102R008Y110R

BOLT

M8 x 110mm

2шт.

10

KHH0515

BOLT

M8 x 140mm

2шт.

11

153081A1

WASHER

4шт.

12

KBH15820

BRACKET

1шт.

13

166352A1

BOLT

M12 x 30mm

4шт.

14

KHJ2023

HOSE CLAMP

2шт.

15

KHH13550

BRACKET

1шт.

16

166052A1

BOLT

M10 x 25mm

1шт.

17

150953A1

RUBBER BLOCK

1шт.

18

KHH17360

TEE

G3/4"

1шт.

19

KBH14700

HYDRAULIC HOSE

From Oil Filter to Cock Drain

1шт.

20

KHH17400

ADAPTER

1шт.

21

KBH14721

COCK

1шт.

22

KHP25990

DECAL

1шт.
