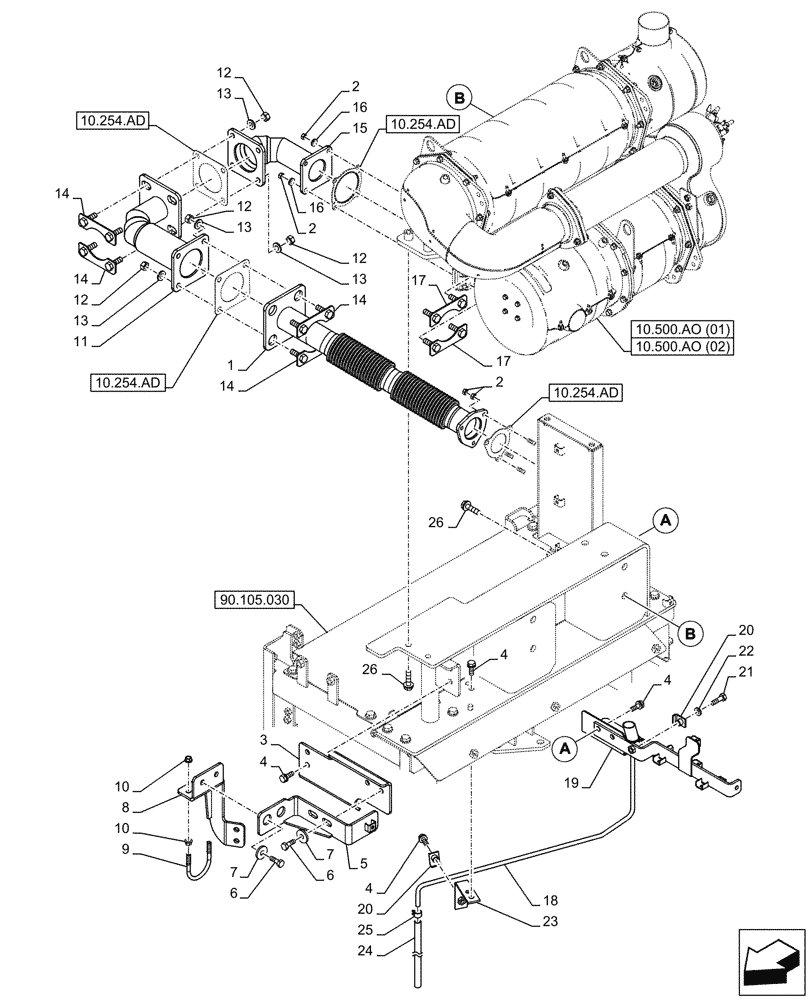

Запчасти Case CX290D LC MH (10.254.010) - EXHAUST SYSTEM, EXHAUST PIPE (10) - ENGINE

1

KBH14770

EXHAUST SYSTEM PIPE

1шт.

2

162R008VR

NUT

M8

10шт.

3

KBH14730

BRACKET

1шт.

4

166347A1

BOLT,Sems, M10 x 30mm

7шт.

5

KBH14740

BRACKET

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

7

KHV10400

WASHER

4шт.

8

KBH14750

BRACKET

1шт.

9

ADV1540

U-BOLT

M10 x 50mm

1шт.

10

KHH11440

FLANGE NUT

M10

4шт.

11

KBH14780

EXHAUST SYSTEM PIPE

1шт.

12

162R012VR

NUT

M12

8шт.

13

157547A1

SPECIAL WASHER

M12

8шт.

14

KNH12001

PLATE

4шт.

15

KBH14790

EXHAUST SYSTEM PIPE

1шт.

16

153081A1

WASHER

M8

4шт.

17

KBH14851

PLATE

M8

2шт.

18

KBH12720

PIPE

1шт.

19

KBH16950

BRACKET

1шт.

20

KLH11320

CLAMP

2шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

22

150409A1

WASHER

M10

1шт.

23

KBH12710

BRACKET

1шт.

24

KHH14110

HOSE

L=750mm

1шт.

25

KHH0405

MOUNTING CLIP

1шт.

26

105R012Y045R

BOLT

M12 x 45mm

8шт.
