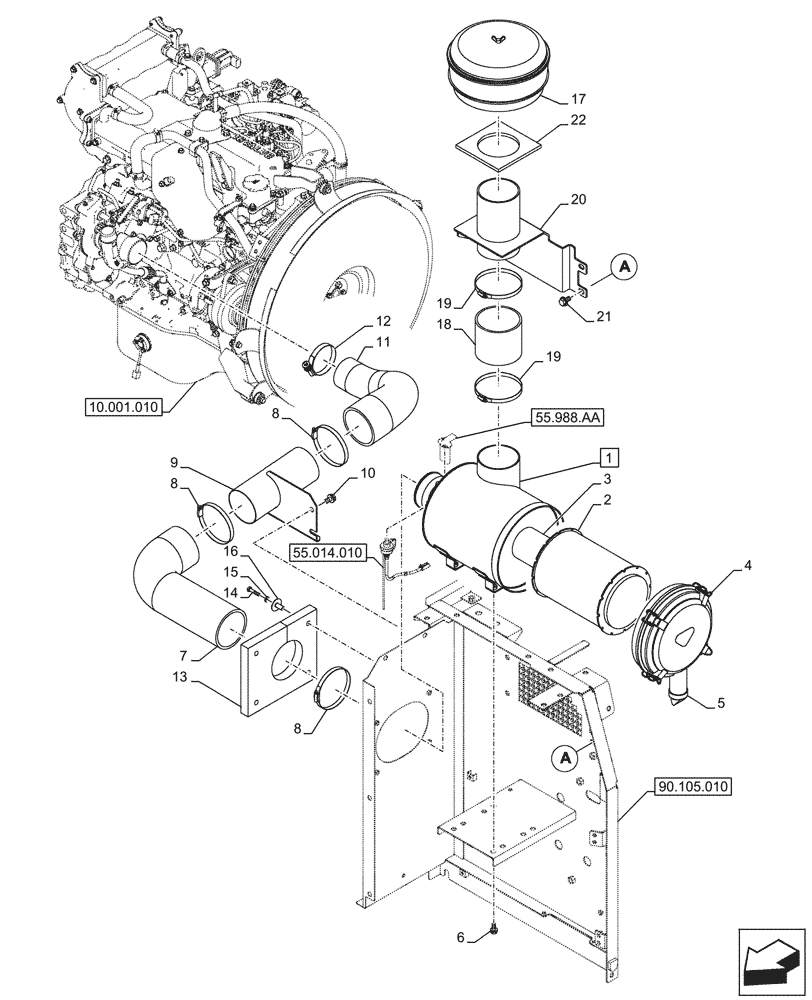

Запчасти Case CX290D LC MH (10.202.010) - VAR - 488031 - AIR CLEANER, PRE-CLEANER CYCLONE TYPE (10) - ENGINE

1

KRH17230

AIR CLEANER

ASSY, Incl 2 - 5

1шт.

2

KBH0921

AIR FILTER

Air Cleaner, Primary

1шт.

3

KBH0922

AIR FILTER

Air Cleaner, Secondary

1шт.

4

KBH0923

COVER ASSY

1шт.

5

KBH0924

VALVE

1шт.

6

166052A1

BOLT

M10 x 25mm

4шт.

7

KBH14190

INTAKE AIR HOSE

1шт.

8

KHJ33120

HOSE CLAMP

3шт.

9

KBH12561

BRACKET

1шт.

10

105R012Y025R

BOLT

M12 x 25mm

2шт.

11

KBH12570

INTAKE AIR HOSE

1шт.

12

KHH13210

CLAMP

1шт.

13

KBH16370

SEAL

1шт.

14

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

KHH0358

RETAINER

4шт.

17

KHH13120

FILTER ASSY

1шт.

18

KRH12040

LARGE HOSE

1шт.

19

KHJ33130

HOSE CLAMP

2шт.

20

KBH16380

BRACKET

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

22

KRH12050

SEAL

1шт.
