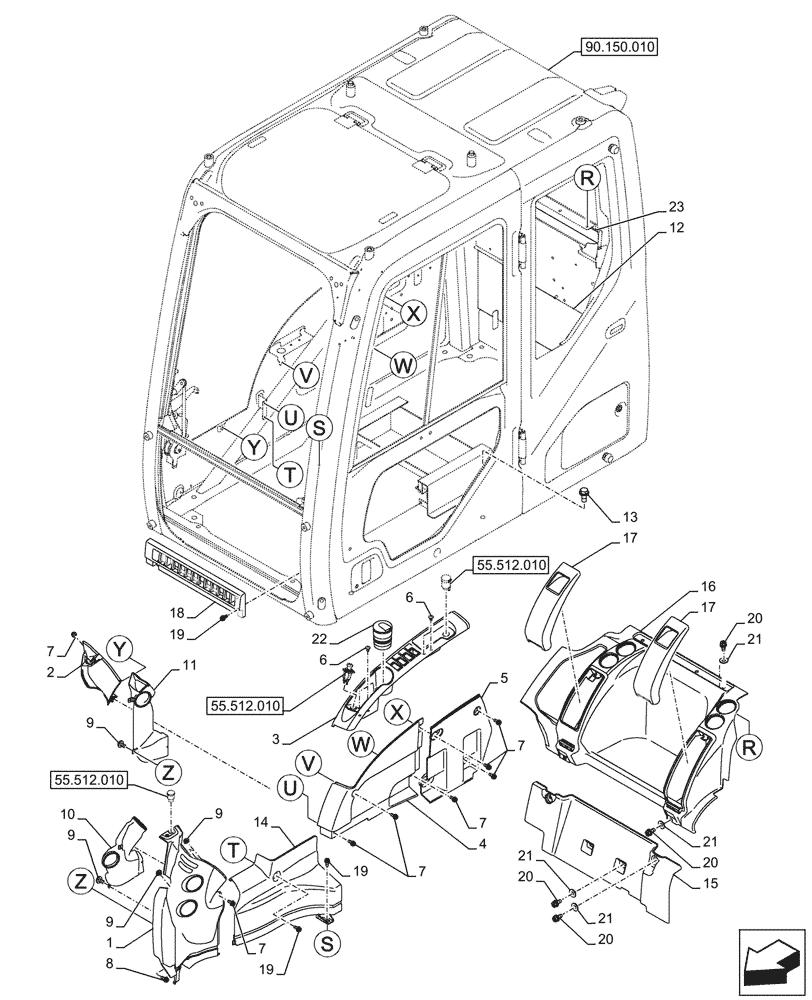

Запчасти Case CX290D LC MH (90.160.050) - CAB, PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN27080

TRIM

1шт.

2

KHN27090

TRIM

1шт.

3

KHN27101

TRIM

1шт.

4

KHN27110

TRIM

1шт.

5

KHN27121

TRIM

1шт.

6

KHN2682

SCREW,Spcl

M6 x 1.0 x 12mm

4шт.

7

KHN14710

BOLT,Spcl

M6 x 1.0 x 14mm

1шт.

8

KHN18110

BOLT,Spcl, Hex, M6 x 20mm

1шт.

9

KHN27470

SCREW

8шт.

10

KHR27030

DUCT

1шт.

11

KHR27040

DUCT

1шт.

12

KHN28170

SEAL

1шт.

13

105R012Y025R

BOLT

M12 x 25mm

6шт.

14

KHN27130

TRIM

1шт.

15

KHN27140

TRIM

1шт.

16

KHN27160

TRIM

1шт.

17

KHN27170

COVER

2шт.

18

KHN27180

COVER

1шт.

19

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

6шт.

20

KHN2309

BOLT,Spcl

M8 x 20mm

10шт.

21

KHN2312

WASHER

10шт.

22

KHN22470

ASH TRAY

1шт.

23

KHN28160

SEAL

1шт.
