(90.160.040) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH

Запчасти Case CX290D LC MH (90.160.040) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

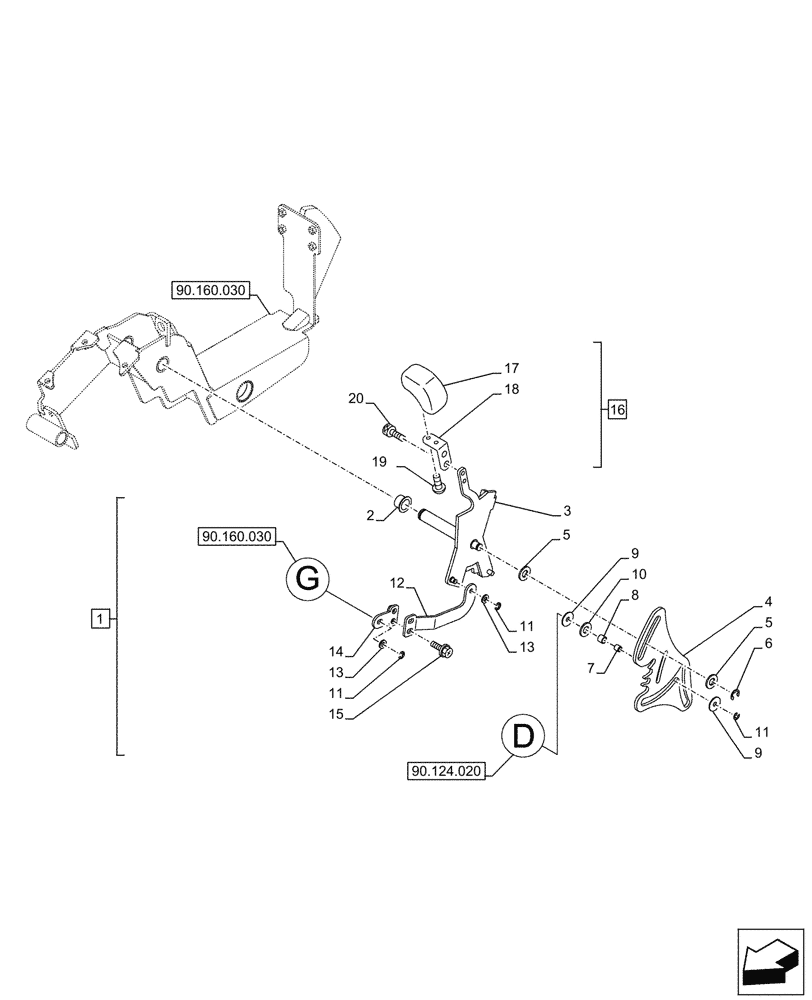

Схема запчастей Case CX290D LC MH - (90.160.040) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.030
11
1
13
4
3
13
9
10
12
6
5
20
5
9
14
7
8
18
11
19
11
17
2
15
16
90.124.020
90.160.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN41881

BOX

ASSY, Incl 2 - 15

1шт.

See also Figure 90.124.010, 90.124.020, 90.160.020, 90.160.030

1шт.

2

KHN2249

BUSHING

6шт.

3

KHN24120

SUPPORT

1шт.

4

KHN13301

PLATE

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

378J0080Z

RING

1шт.

7

KHN13310

BUSHING

1шт.

8

KHN13320

ROLLER

1шт.

9

150529A1

WASHER

21.5mm

2шт.

10

150409A1

WASHER

M12

1шт.

11

378J0050Z

CIRCLIP

3шт.

12

KHN24140

SHEET METAL

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

14

KHN24150

SHEET METAL

1шт.

15

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

4шт.

16

KHN17080

HANDLE GRIP

ASSY, Incl 17 - 20

1шт.

17

KHN12380

GRIP

1шт.

18

KHN17090

BRACKET, SUPPORTING

1шт.

19

KHR2733

SELF-TAP SCREW

2шт.

20

KHN17280

BOLT,Hex Skt Hd

M6 x 10mm

2шт.
