(90.160.020) - VAR - 488035 - CONSOLE, SIDE PANEL, RH

Запчасти Case CX290D LC MH (90.160.020) - VAR - 488035 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

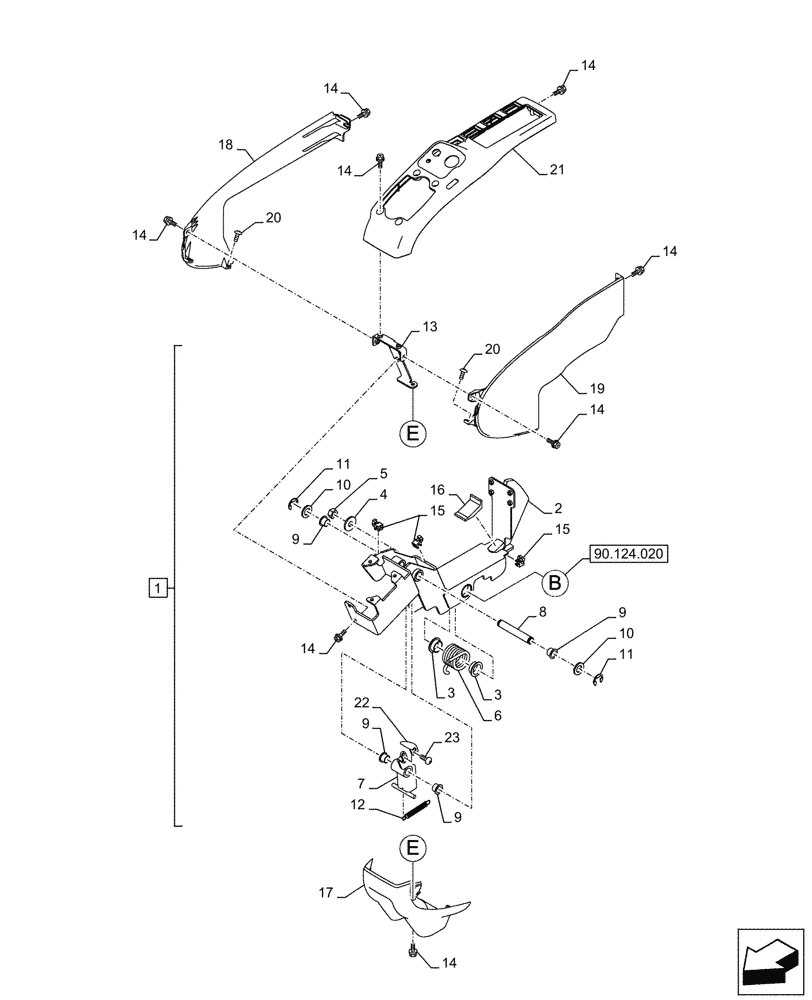

Схема запчастей Case CX290D LC MH - (90.160.020) - VAR - 488035 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.020
15
22
7
21
14
1
2
18
19
3
14
9
9
13
14
6
5
14
8
14
9
14
3
10
15
16
9
10
20
4
12
20
14
11
23
14
17
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN41881

BOX

ASSY, Incl 2 - 16

1шт.

See also Figure 90.124.010, 90.124.020, 90.160.030, 90.160.040

1шт.

2

KHN39731

FRAME

1шт.

3

KHN2261

BUSHING

2шт.

4

151161A1

WASHER

M12

1шт.

5

162R012VR

NUT

M12

1шт.

6

KHN24001

SPRING

1шт.

7

KHN24041

BELLCRANK

1шт.

8

KHN24060

PIN

1шт.

9

KHN2249

BUSHING

4шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

KHN2270

LOCKING RING

2шт.

12

KHN26200

SPRING

1шт.

13

KHN24100

BRACKET, SUPPORTING

1шт.

14

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

20шт.

15

KHN17050

CLIP

3шт.

16

KHN43110

SEAL

1шт.

17

KHN23160

COVER

1шт.

18

KHN23210

COVER

1шт.

19

KHN23200

COVER

1шт.

20

KHR2737

SELF-TAP SCREW

4шт.

21

KHN42490

COVER

1шт.

22

KHN12360

LEVER

1шт.

23

KHN23760

SCREW

2шт.
